Home Switch Tactile switch 05 Series tact switch Normally Closed Metal Push Button PCB Tact Switch

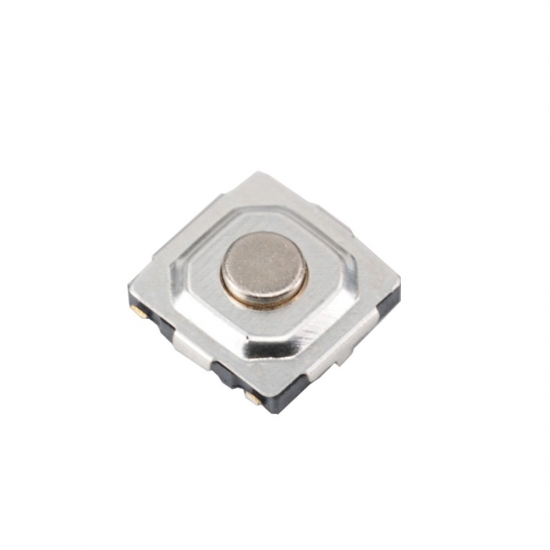

Normally Closed Metal Push Button PCB Tact Switch

KAN0546: DC12v 50mA, 5*5mm, metal push button tact switch.

  • Brand:

    Gangyuan
  • Item NO.:

    KAN0546
  • Order(MOQ):

    1000
  • Payment:

    T/T, Paypal full payment before produce
  • Product Origin:

    China
  • Color:

    Black Metal
  • Shipping Port:

    Ningbo/ Shenzhen
  • Lead Time:

    5-7 working days
  • Product Detail

Normally Closed Metal Push Button PCB Tact Switch


Basic Information

P/N
 KAN0546
Dimension
5.2*5.2*1.5mm
Rating current

12VDC 50mA

Operating force

100gf, 160gf, 260gf(at customers request)

Life cycles
100,000/ 200,000/ 500,000/ 1,000,000 cycles
Travel
0.25±0.1mm



Dimension



Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switche

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application



Tactile switch use for Audio and video products: Router: set-top boxes: communications products: white home appliances; black home appliances: small household appliances: security products: toys; office equipment, etc.
