Home Switch Slide switch 2p2t pcb vertical slide switch

2p2t pcb vertical slide switch

This slide switch has a small size and high efficiency.The hard iron shell can avoid deformation.This slide switch product type can be satisfied with mechanical and electrical performance.

  • Brand:

    Gangyuan
  • Item NO.:

    SS22F24
  • Order(MOQ):

    100pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    14 working days for payment
  • Product Detail

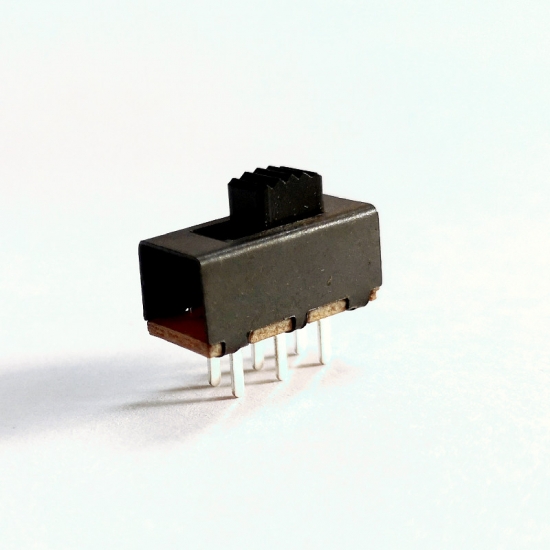

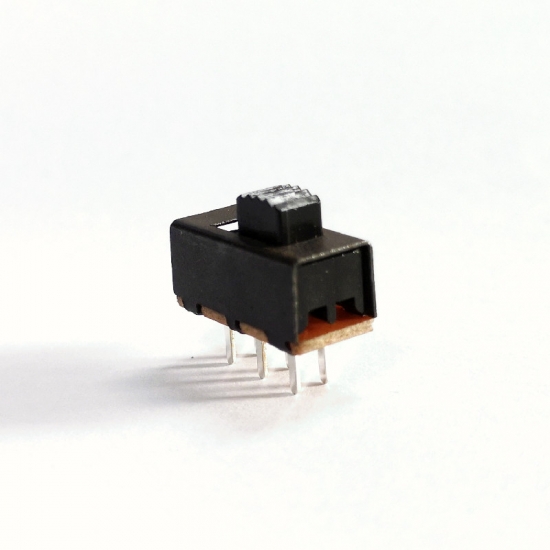

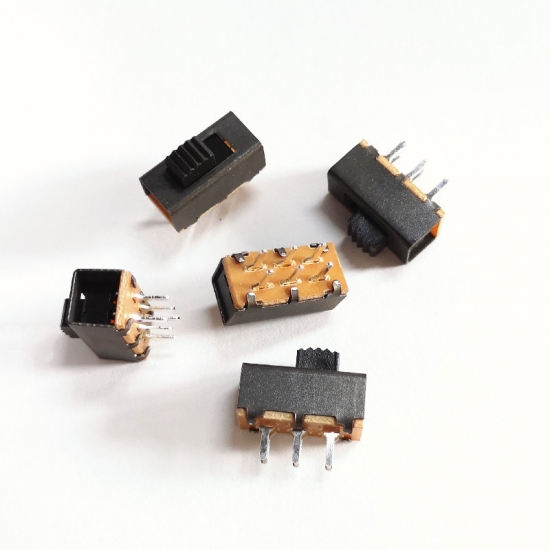

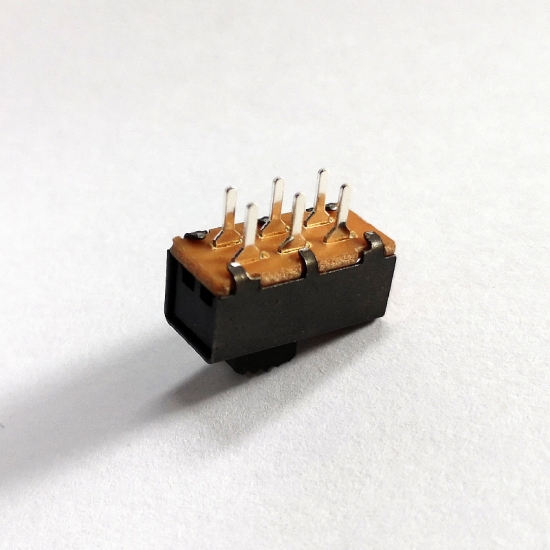

6 pin small dpdt pcb mount icon slide switch

The handle height of the toggle switch can be customized according to customer requirements.


Basic Information


Rating DC 50V 0.3A
Contact resistance
30mΩ MAX
Insulation resistance
100MΩ MIN
Operting force
250gf±100gf
Life test
10,000 cycles
Function 2P2T
Operating force 250gf±150gf
Practical temperature range
-16℃~+60
Handle height


3mm

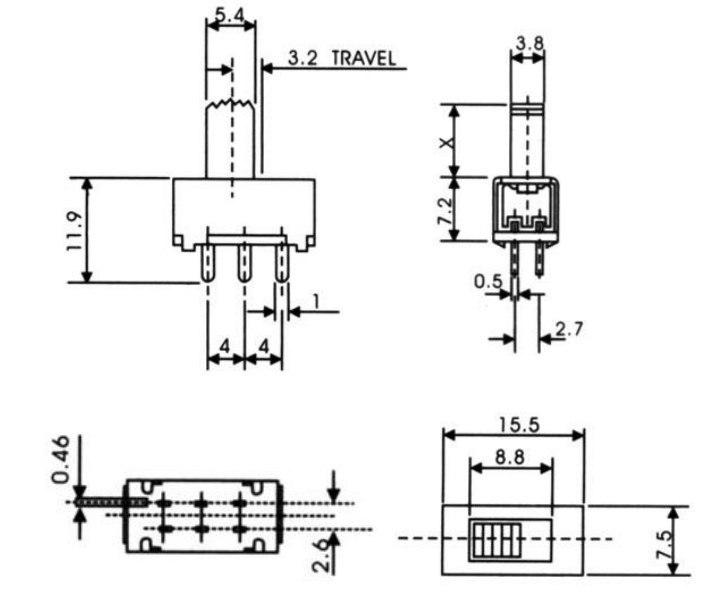

Dimension


Our advantage


1. The factory has more than 20 years of experience in the field of switch manufacturing.

2. Variety of categories. More than 2000 models.

3. Good quality. Using raw materials imported from Japan and South Korea.

   More than 85% of product automated manufacturing coverage.

4. Excellent R&D team, clients design requests are welcome.

5. Two thousands invention patents and 47 utility model patents.

6. Assembly process in 100,000 grade dust-free workshop.

7. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

8. After-sales service team. Global radiation multiple service outlets.


Application


Slide switch is to turn on or off the circuit by turning its actuator (switch handle). It has the characteristics of flexible slider action, stable and reliable performance, and is widely used in electrical appliances, machinery, communications, digital audio and video, building automation, and electronic products.

 FAQ


1. Q: Are you manufacture/ factory? Location?

   A: Yes, three palnts located in Shenzhen , Zhejiang, Hubei province.

2. Q: Can I get free sample before placing an order ? MOQ?

   A: Yes, free samples will get ready within 3~5 days. For the slide switches, our MOQ is 1,000pcs.

3. Q: What about the delivery time?

   A: Stable delivery. 7-15 working days.

4. Q: What about terms of payment ?

   A: T/T, L/C, Paypal, Cash etc.

5. Q: Can you customize products according to the design drawing?

   A: We have independent R&D center in Shezhen, ODM/OME project is welcome.

6.Q: Do you test all your goods before delivery?

  A: Yes, we have 100% test before delivery.
