Home Switch Slide switch 2 position right angle dip slide switch

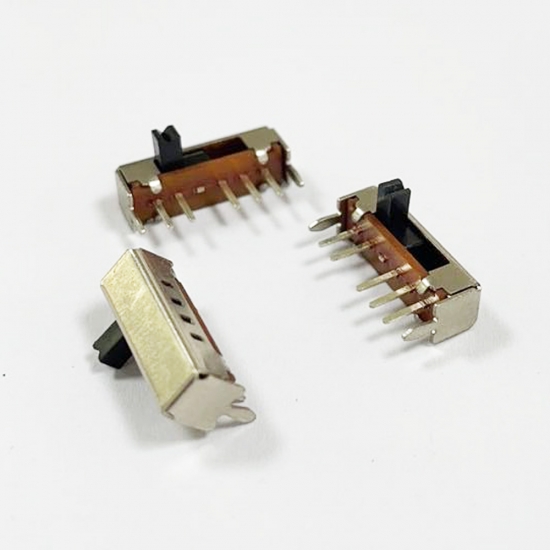

2 position right angle dip slide switch

The slide switch stem has multi-shape options. If necessary, you can customize them.

  • Brand:

    Gangyuan
  • Item NO.:

    SK14D02
  • Order(MOQ):

    1000
  • Payment:

    100% T/T prepaid after order confirmed
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    yellow
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 working days for payment
  • Product Detail

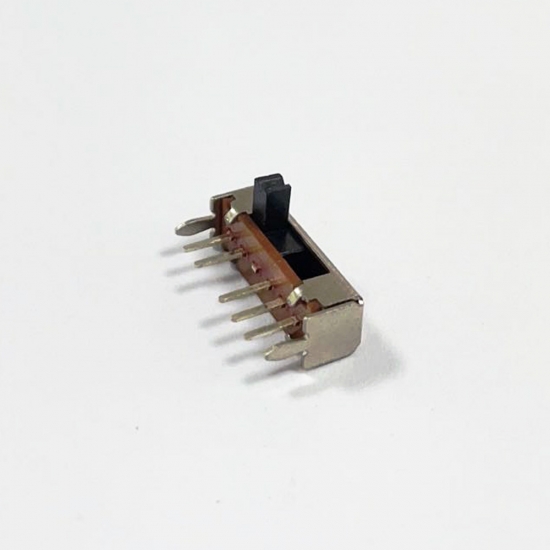

2 position right angle dip slide switch

The nornal height ranges from 2-7mm.


 Slide switch datasheet


Type: SK14D02

Timing: NSN-SHORTING

Operating force: 250gf±100

Rating: 0.3A 50VDC

Contact resistance:≤100mΩ

Insulation resistance: ≥100MΩ

Life: 5000 cycles

Practical temperature rance: AT-16℃-+60℃.

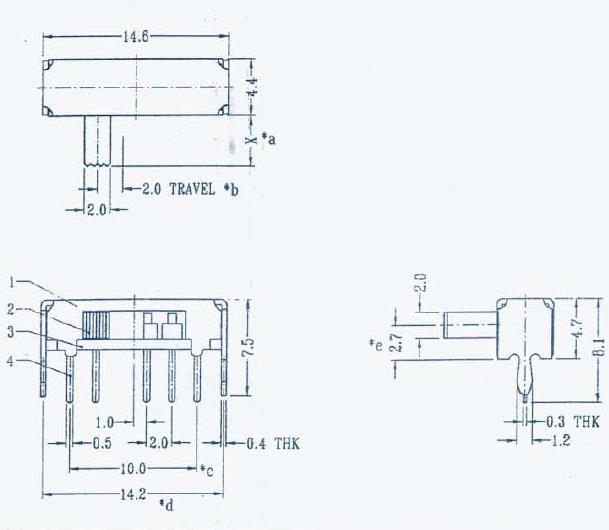

 Slide switch datasheet

 The composition of the slide switch


The slide switch is mainly assembled by the following parts through the corresponding process:
1. Iron shell (material: generally iron; treatment process: treated by electroplating nickel or black-burning process to prevent its oxidation)
2. Plastic handle (Material: generally POM material, if there is a requirement for fire resistance, flame retardant and high temperature resistance,

PA nylon material is often used. Processing technology: injection molding)
3.Terminal (material: generally phosphor bronze; treatment process: silver plating)
4.Insulation bottom plate (material: bakelite; processing technology: stamping and forming)
5. Contact chip (material: generally phosphor bronze; treatment process: electroplating silver)
6.Round wave beads (material: generally stainless steel; treatment process: nickel plating)
7. Slingshot (Material: Bronze; Processing Technology: Stamping and Forming)
8. Decorative oil (Material: red oil or green oil, a kind of chemical oil, applied to the contact part of the terminal and the bottom plate to play a decorative role.

Generally non-toxic and environmentally friendly)


 Application

  • 1. Audio-visual products: MP3, MP4 audio;
  • 2. Digital products: digital cameras, digital video cameras, etc.;
  • 3. Communication products: mobile phones, car phones, telephones, building equipment, PDAs, etc
  • 4. Security products: video intercoms, monitors, etc
  • 5. Toys: electronic toys, etc.;
  • 6.Computer products: cameras, etc.;
  • 7. Fitness equipment: electronic body fat scales, treadmills, etc.;
  • 8.Medical equipment: sphygmomanometer, clinical thermometer, hospital call system, etc.

  FAQ


1. Q: Are you manufacture/ factory? Location?

    A: Yes, switch manufacturer. three plants locate in Shenzhen , Zhejiang, Hubei province.

2. Q: Can I get free sample before placing an order ? MOQ?

    A: Yes, free samples will get ready within 3~5 days. About tact switch, MOQ is 1,000pcs.

3. Q: What about the delivery time?
    A: Stable delivery. 7-15 working days.

4. Q: What about terms of payment ?

    A: T/T, L/C, Paypal, Cash etc.

5. Q: Can you customize products according to the design drawing?
    A: We have independent R&D center in Shezhen, ODM/OME project is welcome.

6.Q: Do you test all your goods before delivery?

   A: Yes, we have 100% test before delivery.
