1p4t slide switch

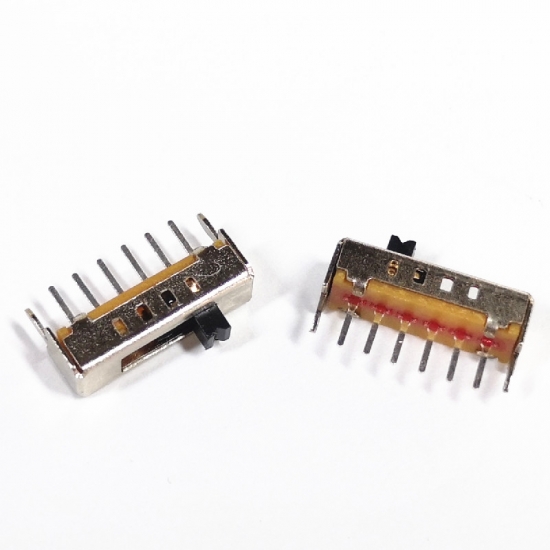

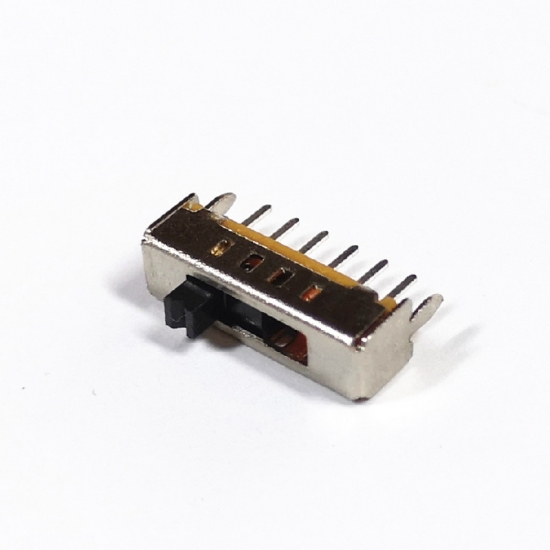

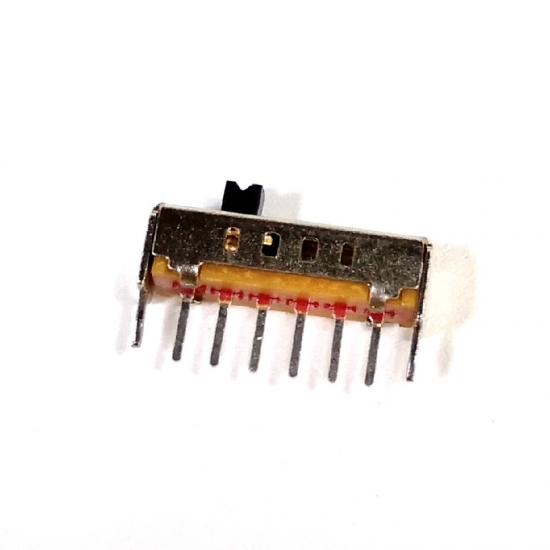

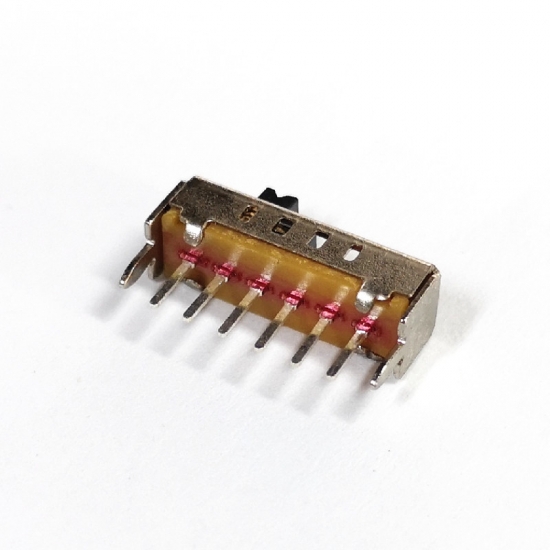

6 pin Bilateral holes 4 position slide switch

Slide Switches are an electromechanical device used to control current flow in a circuit path.

 Detail specification

Rating: DC50X 0.5A

Function: 1P4T

Timing: Non-shorting

Contact resistance: 30mΩ Max

Insulation resistance: 100MΩ MIN

Operating force: 300gf±100gf

Life test: 8000 cycles

Handle shape: Customizable.

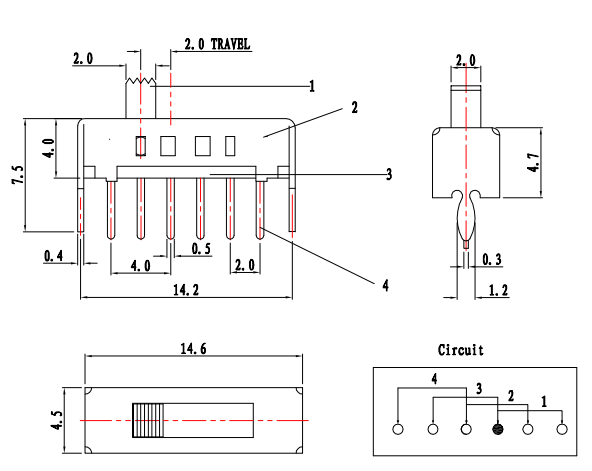

 Size

 How does slide switch work

 Application

• computers, peripherals and network devices (laptops, network hubs, routers, gaming controllers)
• telecommunications equipment (telephone and cable modems, audio-visual devices, microphones)
• consumer electronics (handheld games, remote controls, headphones, headsets, earbuds, channel selector on set-top boxes)
• test and measurement equipment
• appliances (small and large, both indoor and outdoor)
• small equipment (handheld devices, portable tools, office equipment)
• automotive and medical applications
• thermostat select switch
• lighting devices

  FAQ

1. Q: Are you manufacture/ factory? Location?

    A: Yes, three palnts located in Shenzhen , Zhejiang, Hubei province.

2. Q: Can I get free sample before placing an order ? MOQ?

    A: Yes, free samples will get ready within 3~5 days. About 4 ways slide switch, MOQ is 5000pcs.

3. Q: What about the delivery time?
    A: Stable delivery. 7-15 working days.

4. Q: What about terms of payment ?

    A: T/T, L/C, Paypal, Cash etc.

5. Q: Can you customize products according to the design drawing?
    A: We have independent R&D center in Shezhen, ODM/OME project is welcome.

6.Q: Do you test all your goods before delivery?

   A: Yes, we have 100% test before delivery.
