Home Switch Micro switch G20 Series Three terminals SPDT micro switch

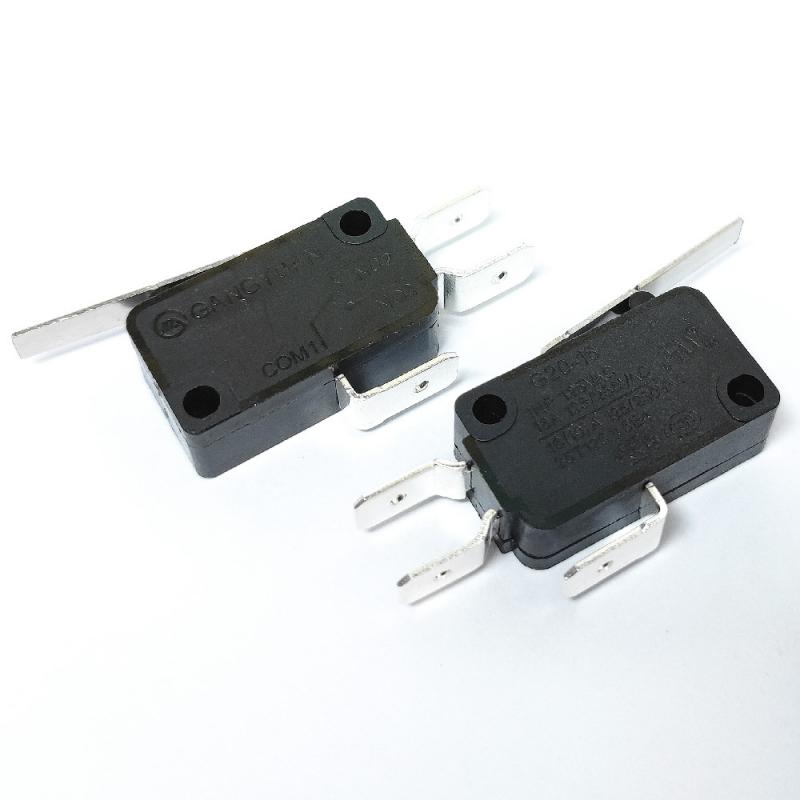

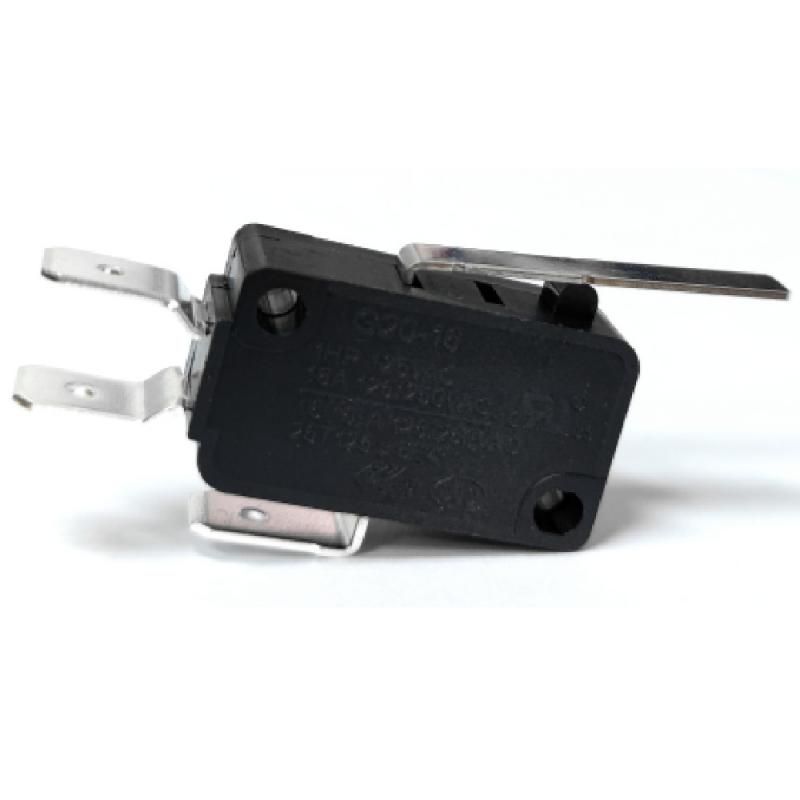

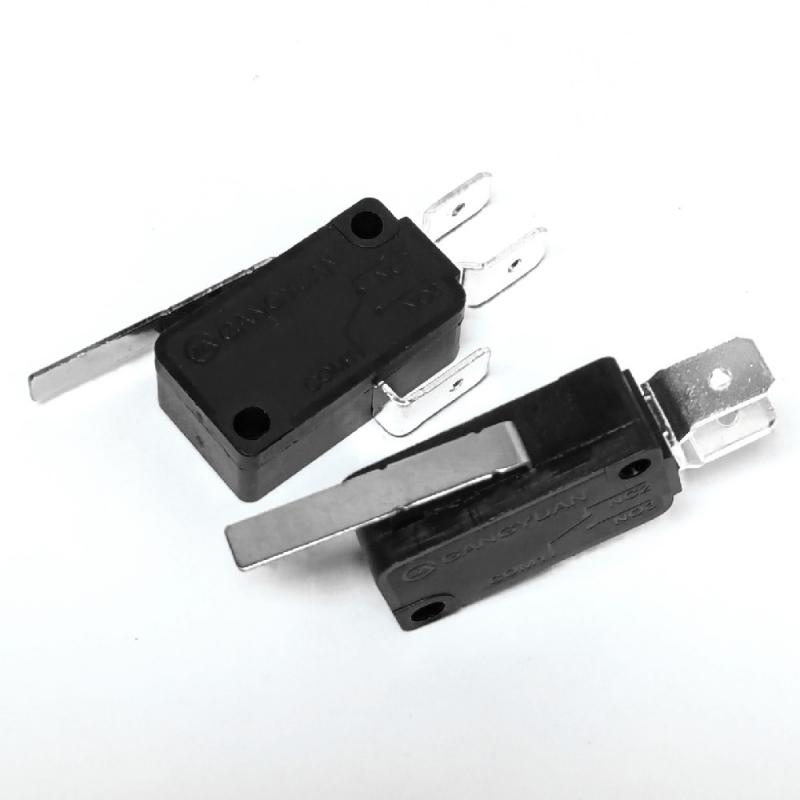

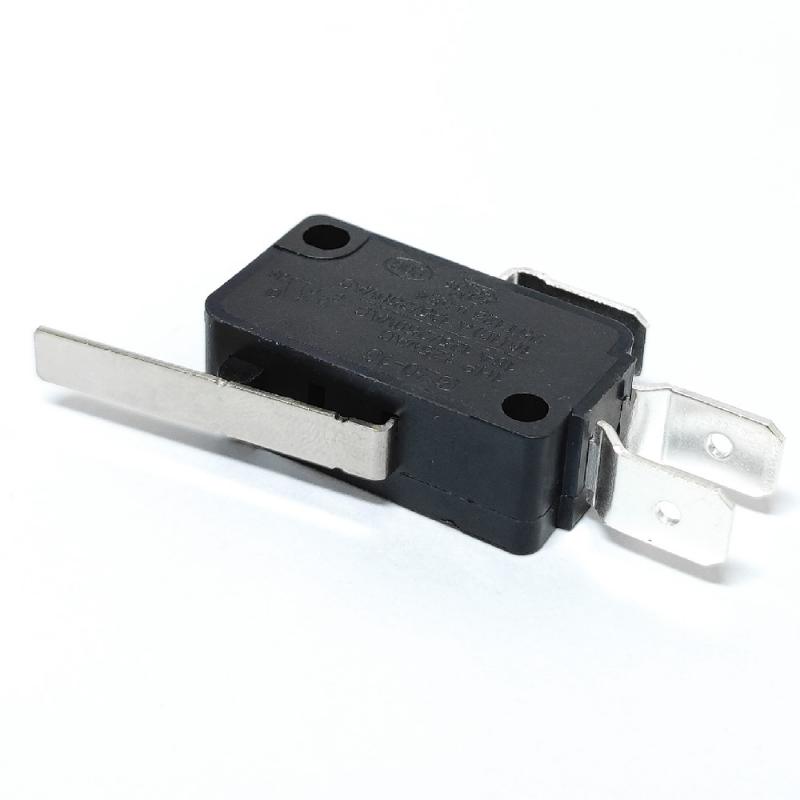

Three terminals SPDT micro switch

A micro switch is a snap-action precision changeover switch with a very small contact gap. The snap-action defines a changeover switch whereby contact making and breaking speed is independent of the operating speed of the actuator. It is also referred to as a miniature snap-action switch.

  • Brand:

    Gangyuan
  • Item NO.:

    G20-16CM02-30-1157
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 Working Days For Payment
  • Product Detail

6.3×0.8mm quick connect terminal type 16A micro switch

Micro switch factory


Parameter


3 pin micro switch wiring


Contact Resistance: ≤200mΩ

Insulation Resistance: ≥100MΩ

Dielectric Withstanding Voltage: 1500V AC 1Min

Soldering Temperature: 260±5℃ 5s

Operating Force: 30±15gf

Life Time: 10000 Cycles

Operating Temperature Range: -25℃~+125℃

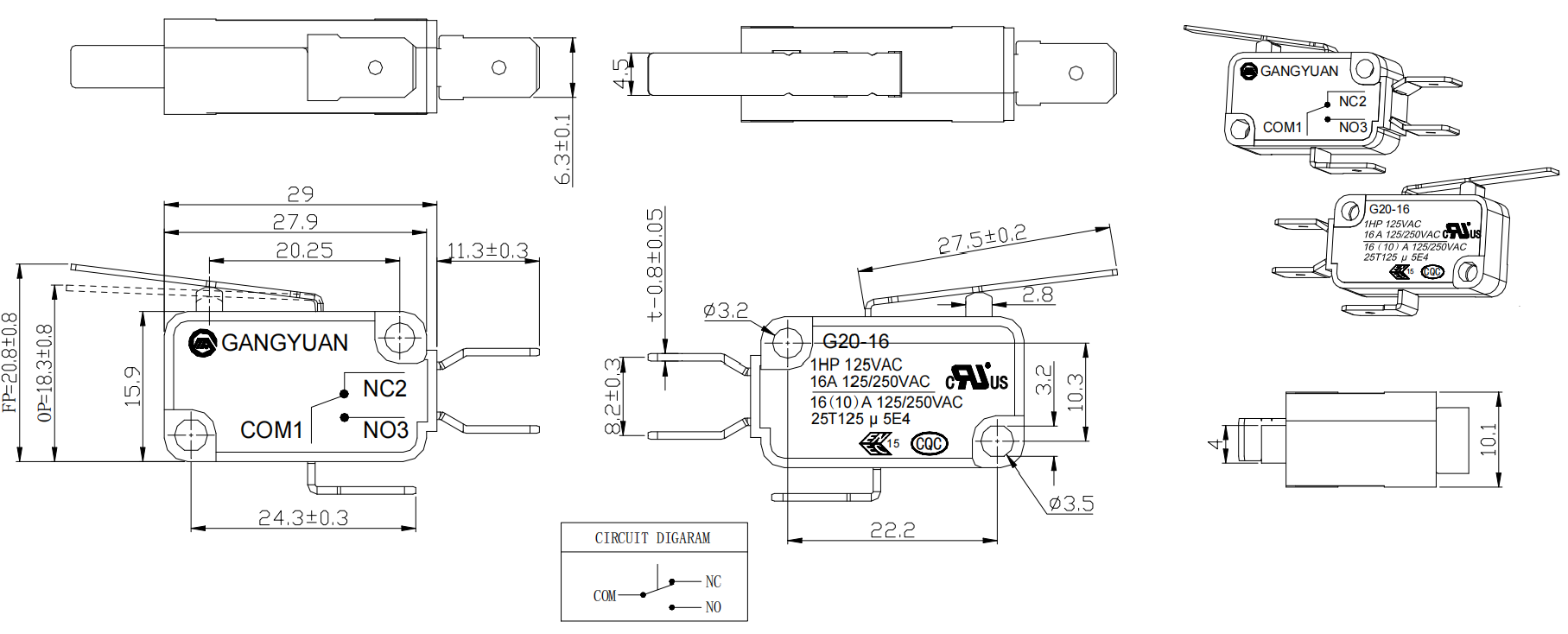

Drawing



How does a micro switch work?


The micro switch makes physical contact with an object. After that, its contacts change position.

The basic working principle is as follows:


When the plunger is in the released or rest position


  • The normally closed circuit can carry current.
  • The normally open circuit is electrically insulated.


When the plunger is depressed or switched


  • The normally closed circuit is open.
  • The normally open circuit is closed.



Construction of a micro switch


① Cover

② Cover

③ Plunger (Actuator)

④ Terminal

⑤ Terminal silver point

⑥ Driver slice

⑦ Bracket

⑧ Shrapnel

⑨ Switch slice

⑩ Toggle sheet silver point

⑪ Moving arm
