Home Switch Rocker switch t85 on off on type rocker switch

t85 on off on type rocker switch

3 position rocker switch t85 on off on type lighted rocker switch

  • Brand:

    Gangyuan
  • Item NO.:

    RS601B-101B011L1B
  • Order(MOQ):

    50pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black and blue
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    3 Working Days after payment
  • Product Detail

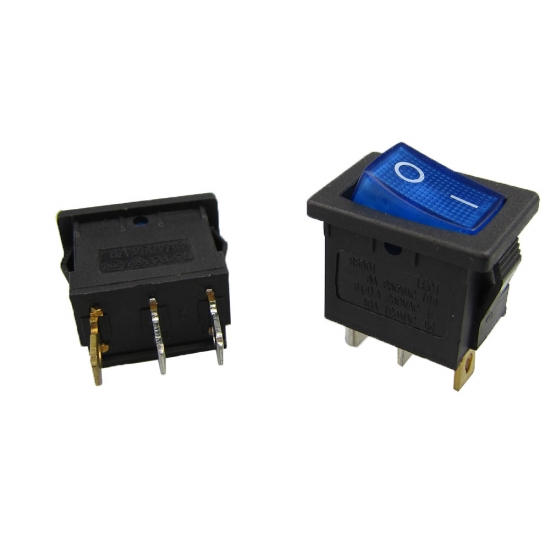

3 position rocker switch t85 on off on type lighted rocker switch

Basic Information

Model Name:

Lighted Rocker switch

Model No.:

RS601B-101B011L1B

Dimension:

21x15mm

Rating:

6/8A, 250V

LED Color:

Red,green,blue,yellow (at your request)

Actuator:

Red, Blue, black,white,green etc

Operating Temperature:

-25℃~+85℃

Electrical Life:

>10000 Cycles

Certifications:

CE,CQC,ROHS,VDE


Dimension

3 pin round onoff rocker switch with led.jpg



Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
