Home Switch Rocker switch t125 55 rocker switch 1e4

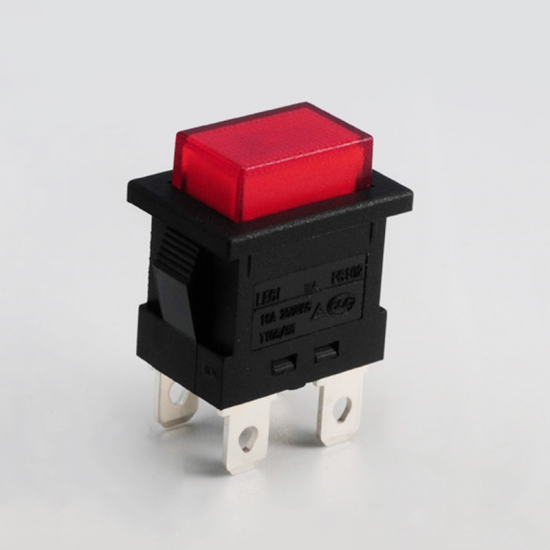

t125 55 rocker switch 1e4

4 pin 16a 250vac t125 55 rocker switch 1e4

  • Item NO.:

    PS102-201N001R1B(S)
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black and red
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 Working Days after payment
  • Product Detail

4 pin 16a 250vac t125 55 rocker switch 1e4

Product Description:

 16a rocker switch 250v t125,16a 250vac t125 55 rocker switch,rocker switch t125 1e4

Product Name:

rocker switch

Product No.:

PS102-201N001R1B(S)

Dimension:

21.1X15.1

Maximum Rating:

16A,250V

Contact Resistance:

≤50mΩ

Insulation Resistance:

≥100mΩ

Dielectric Strength:

≥1500 V AC

Soldering ability

230±10℃/ 3±1s

Electrical Life:

>10000 Cycles

Certifications:

TUV UL CQC VDE

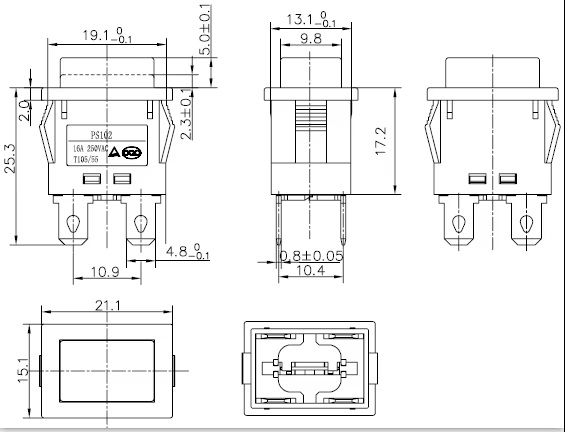

Dimension:
