Home Switch Micro switch G20 Series SPST Snap Action Mini Micro Switch

SPST Snap Action Mini Micro Switch

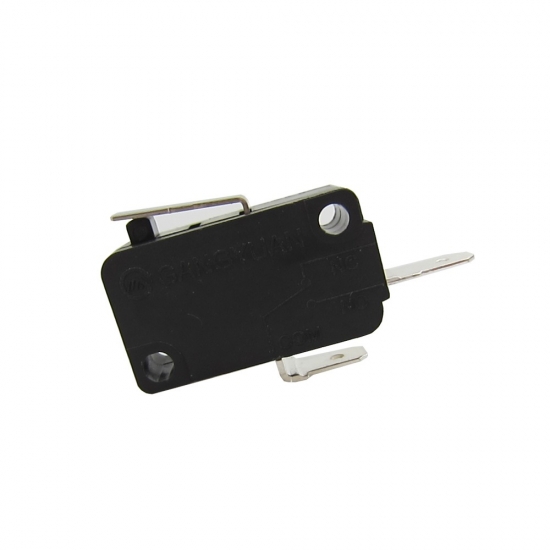

Nice Quality 16A 250VAC 5E4 SPST Snap Action Mini  Micro Switch

  • Brand:

    Gangyuan
  • Item NO.:

    G20-16GN15-150
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 Working Days after payment
  • Product Detail

Nice Quality 16A 250VAC 5E4 SPST Snap Action Mini  Micro Switch


Basic Information

Product name micro switch
Operating temperature -25℃~85℃
Operating Relative Humidity ≤85℃
Dielectric withstanding Voltage 1500V AC 1Min
Voltage Rating 125/250V  AC
Current Rating 10A
Operation force 40±20gf
Soldering Temerature 260±5℃.5S

Dimension

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
