Home Switch Tactile switch 32 Series tact switch smd tact switch manufacturers

smd tact switch manufacturers

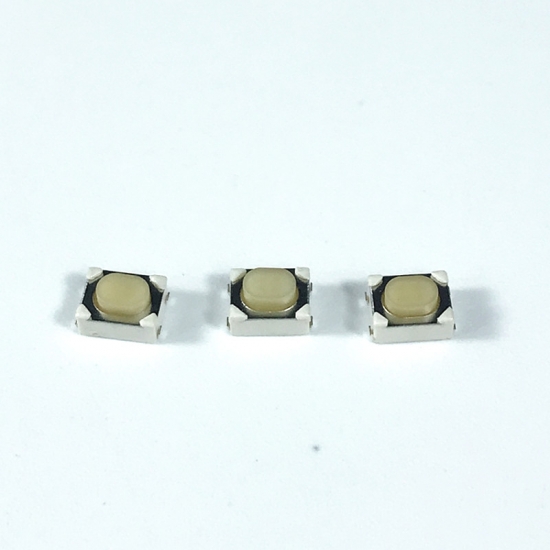

manufacturers 3.2*4.6mm sealed smd used in car keys tact button switch

  • Brand:

    Gangyuan
  • Item NO.:

    KAN3242
  • Order(MOQ):

    10pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    white
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    14 working days for payment
  • Product Detail

manufacturers 3.2*4.6mm sealed smd used in car keys tact button switch

Basic Information

P/N KAN3246
Rating DC16V 50mA
Operation life

100,000 cycles

Type SMD tact switch
Dimension 4.5x3.2x2.5mm
Operating force 100/160/260gf±50gf
Contact resistance 100mΩ Max
Insulation resistance 100MΩ Min

Dimension

automotive hardware parts tact switch.jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact s

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
