Home Switch Tactile switch 32 Series tact switch Ultra miniature SMD Tact Switch surface mount switches

Ultra miniature SMD Tact Switch surface mount switches

Ultra miniature SMD Push Button switch SMD SPDT SMT Tact Switch surface mount switches.


  • Brand:

    Gangyuan
  • Item NO.:

    KAN3742-035B
  • Order(MOQ):

    1000
  • Payment:

    T/T before shipment
  • Product Origin:

    China
  • Color:

    black and gold
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    3-5 Working Days after payment
  • Product Detail

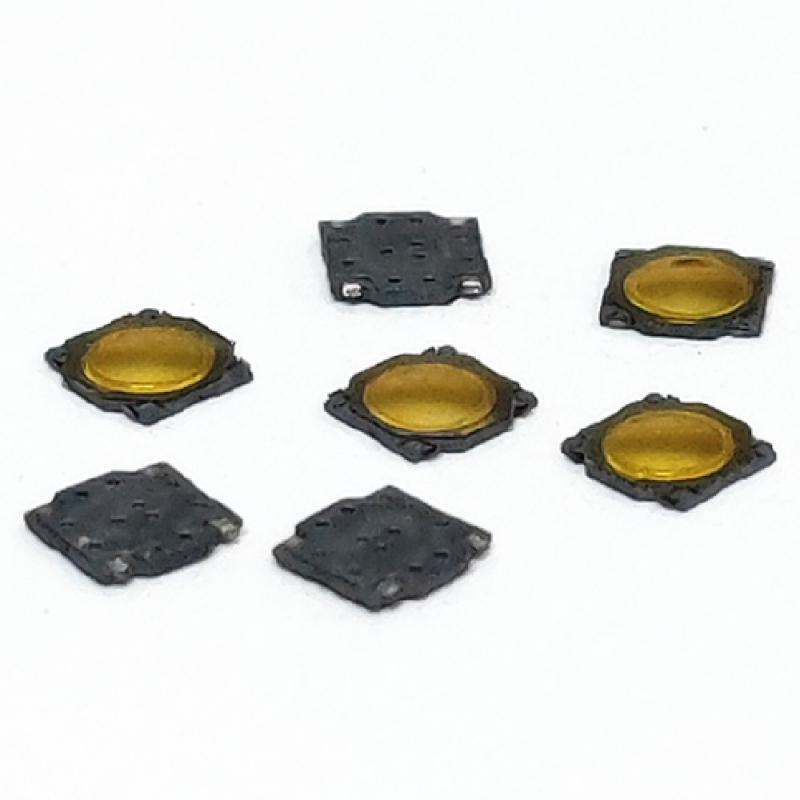

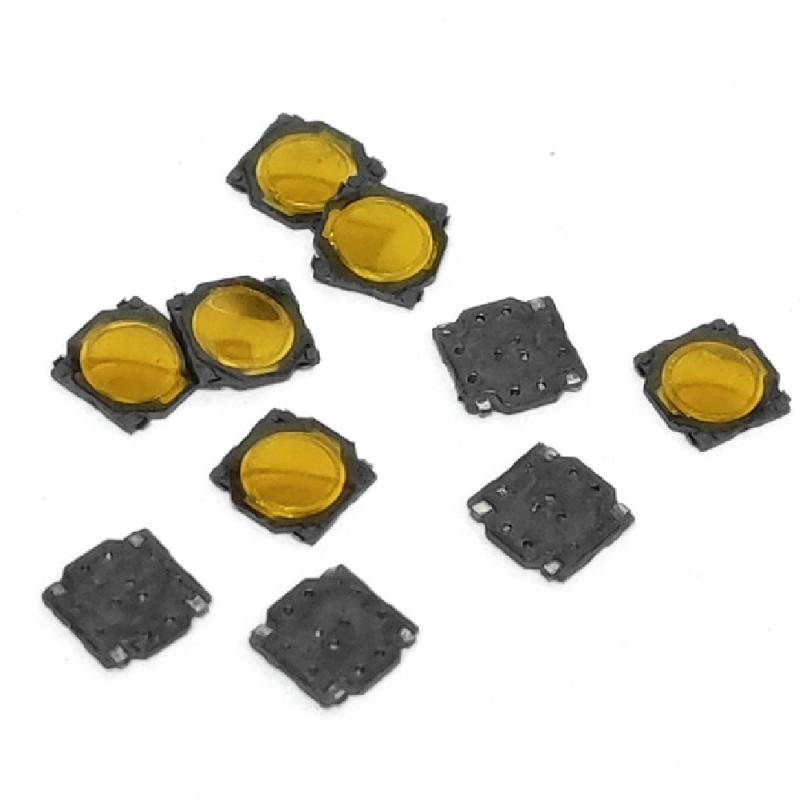

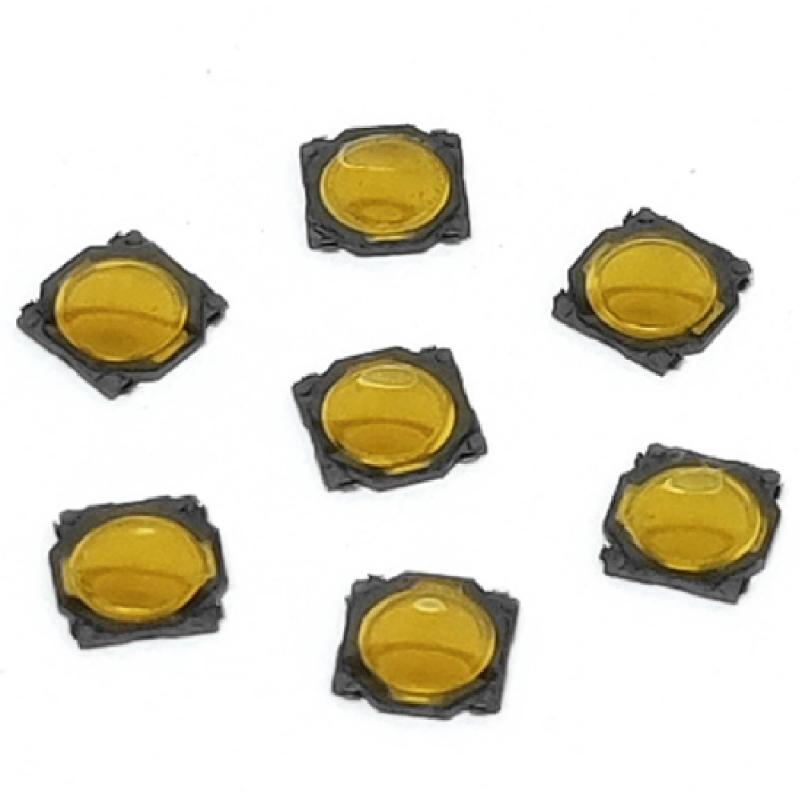

Ultra miniature SMD Tact Switch surface mount switches


Feature

Product Name: Ultra miniature SMD Push Button switch

Product specifications: 2.6x3x0.65mm

Product model: KAN3742-035B

Operational force: 160gf+-30gf

Product life: 100,000 times

Full Travel: 0.15+-0.1mm



Basic parameters

Working temperature: -20 ° Cto + 70 ° C

Rated current: 50mA.12V DC

Insulation resistance: 100MΩ min.100V DC

Dielectric strength: 250V AC for 1 min

Contact resistance: 100m Ω max.

Switching Travel: 0.25±0.1mm

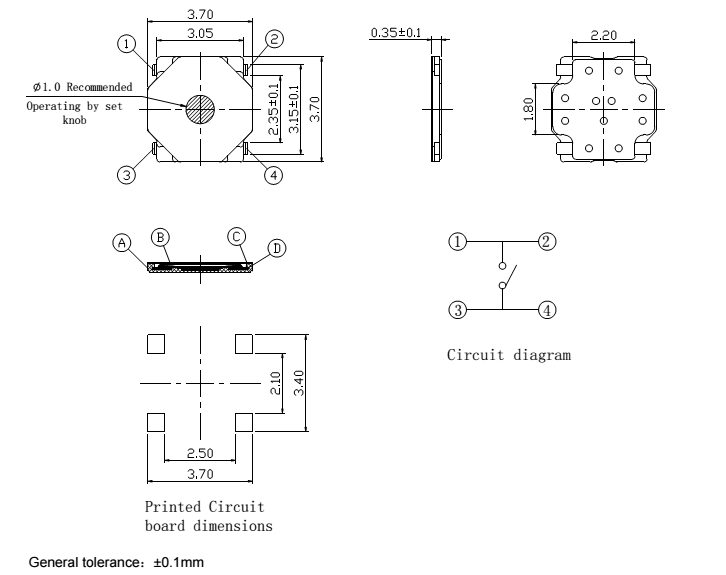

Dimension




Application

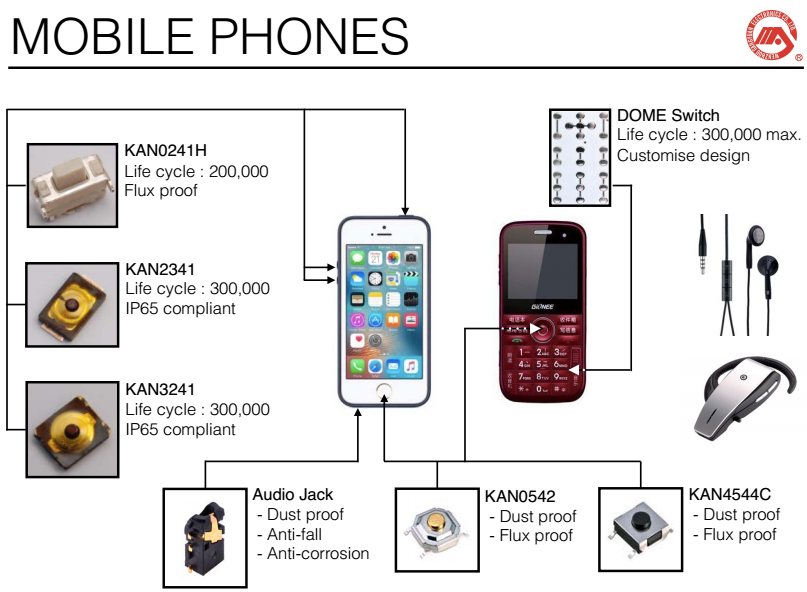

use for Audio and video products, Router, set-top boxes, communications products, white home appliances, black home appliances, small household appliances, security products: toys, office equipment, etc.
