Home Switch Push button switch self-locking push button switch

self-locking push button switch

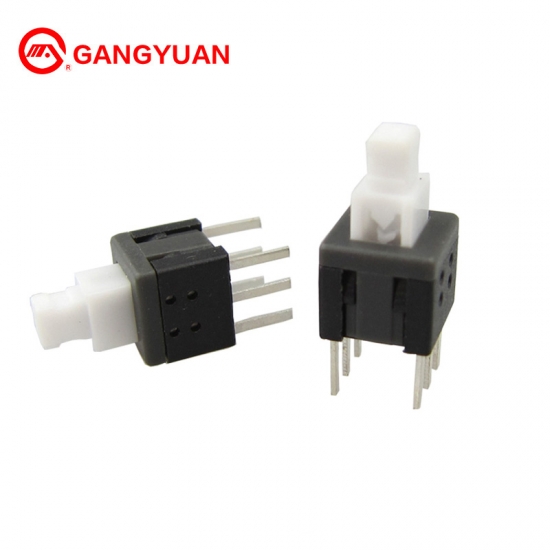

5.8*5.8mm 0.1A 30V on off push button switch self-locking Switch

  • Brand:

    Gangyuan
  • Item NO.:

    PB21E06371-06
  • Order(MOQ):

    1 pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black and white
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    3 Working Days after payment
  • Product Detail

5.8*5.8mm 0.1A 30V on off push button switch self-locking Switch


Basic Information

push button switches.jpg

Color:Variety

Contact Resistance:≤100mΩ

Insulation Resistance:≥100MΩ

Heat resistance:80±2℃ 72h

Operation life: 10000 cycles

Operating Force: 200±80gf
Full Travel: 2.2±0.2mm


Dimension

on off push button switch 12f629.jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
