Home Switch Rocker switch push on off square rocker switch

push on off square rocker switch

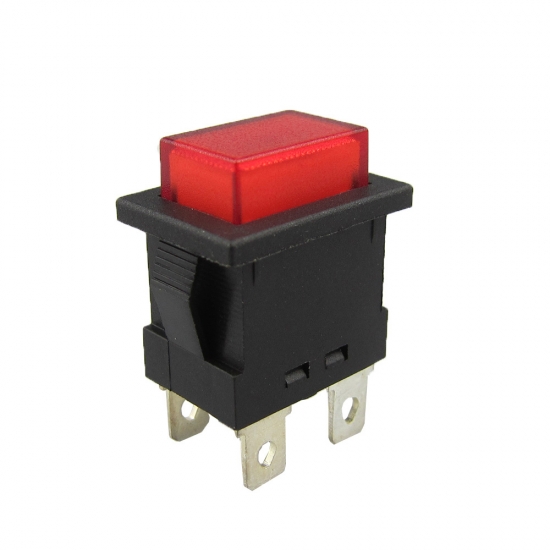

Red button 4 pin push on off  square  rocker switch 16A

  • Brand:

    Gangyuan
  • Item NO.:

    PS102-201N001R1B(S)
  • Order(MOQ):

    10pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black and red
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    3 working days for payment
  • Product Detail

Red button 4 pin push on off  square  rocker switch 16A


Basic Information

Product Name:

rocker switch

Product No.:

PS102-201N001R1B(S)

Dimension:

21.1X15.1

Maximum Rating:

16A,250V

Contact Resistance:

≤50mΩ

Insulation Resistance:

≥100mΩ

Dielectric Strength:

≥1500 V AC

Soldering ability

230±10℃/ 3±1s

Electrical Life:

>10000 Cycles

Certifications:

TUV UL CQC VDE


Dimension

 silicone caps for rocker switch 21x15mm.jpg

rocker switch 4 pin on off.jpgHTB1rBysSXXXX.png

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact s

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
