Home Switch Rocker switch on off on type lighted rocker switch

on off on type lighted rocker switch

3 position rocker switch t85 on off on type lighted rocker switch

  • Brand:

    Gangyuan
  • Item NO.:

    RS601B-101B011L1B
  • Order(MOQ):

    10pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black and blue
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    3 working days for payment
  • Product Detail

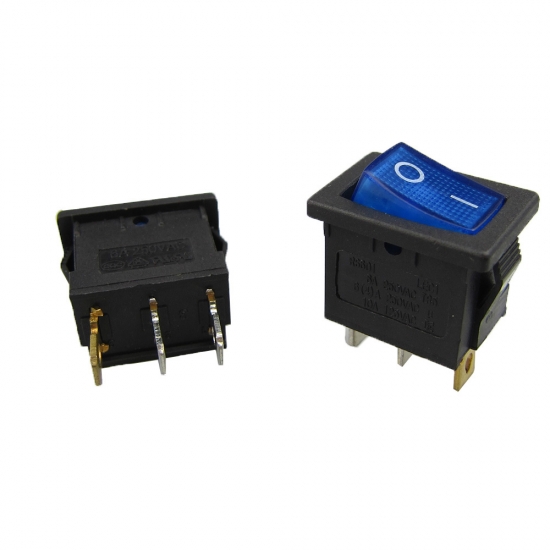

3 position rocker switch t85 on off on type lighted rocker switch


A large drinking machine, juice machine, slot machine, coffee machine, juicer, vending machines, dehumidifiers, electronic lock system, lamps, small household appliances, high-grade furniture, hotel equipment, lighting engineering, building model, bank alarm equipment, security, aviation, automobile, computer and peripheral equipment, medical equipment. Communication equipment, cleaning equipment etc.

Basic Information

Model Name:

Lighted Rocker switch

Model No.:

RS601B-101B011L1B

Dimension:

21x15mm

Rating:

6/8A, 250V

LED Color:

Red,green,blue,yellow (at your request)

Actuator:

Red, Blue, black,white,green etc

Operating Temperature:

-25℃~+85℃

Electrical Life:

>10000 Cycles

Certifications:

CE,CQC,ROHS,VDE


Dimension

 rocker switch light t85 250vac.jpg

mini rocker switch t85 10a 250vac.jpgHTB1Fy762FBpXaU.png


Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact s

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
