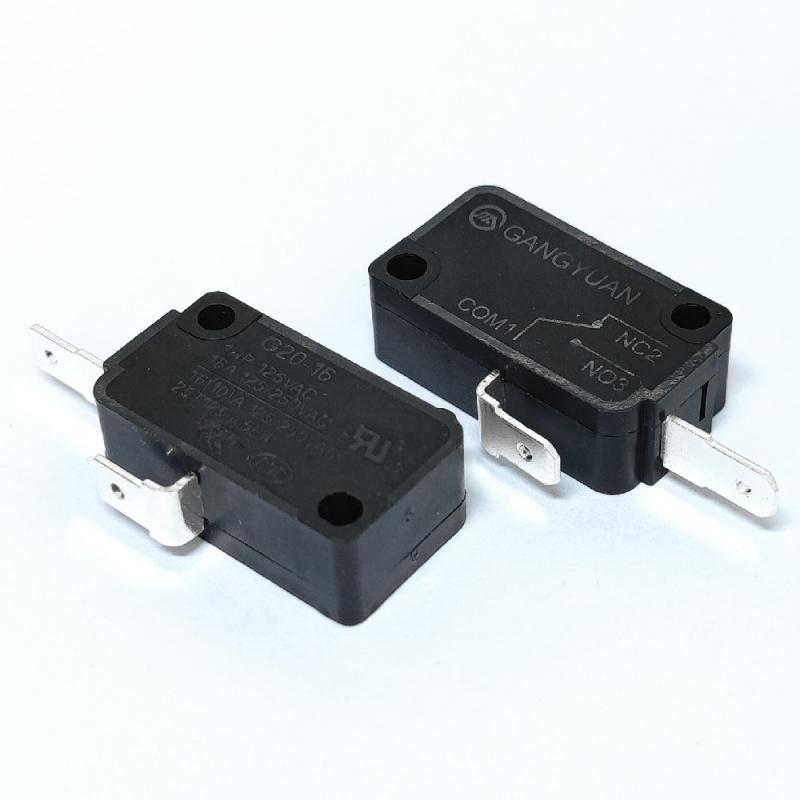

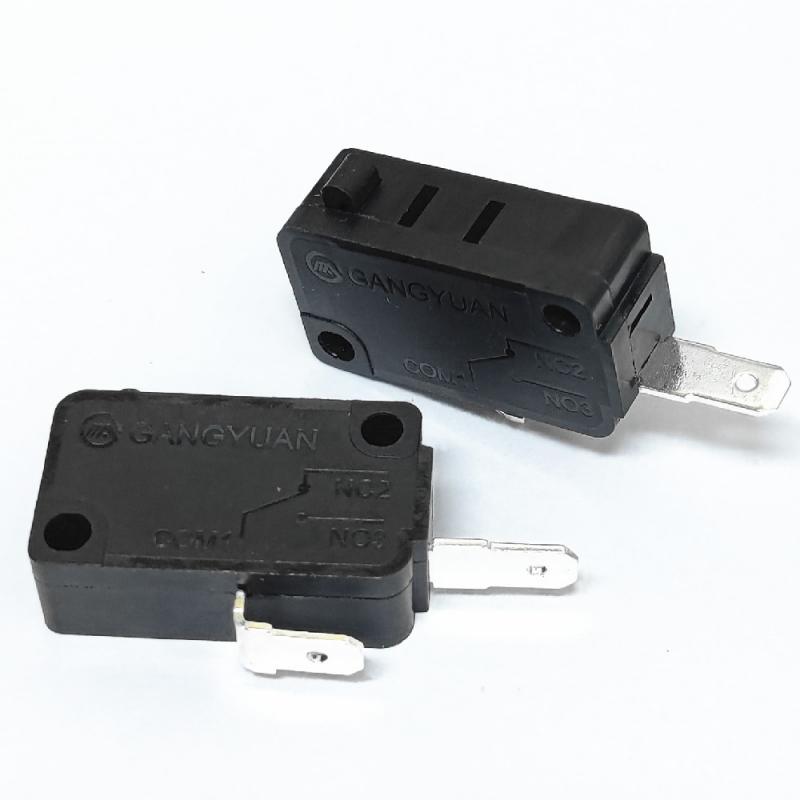

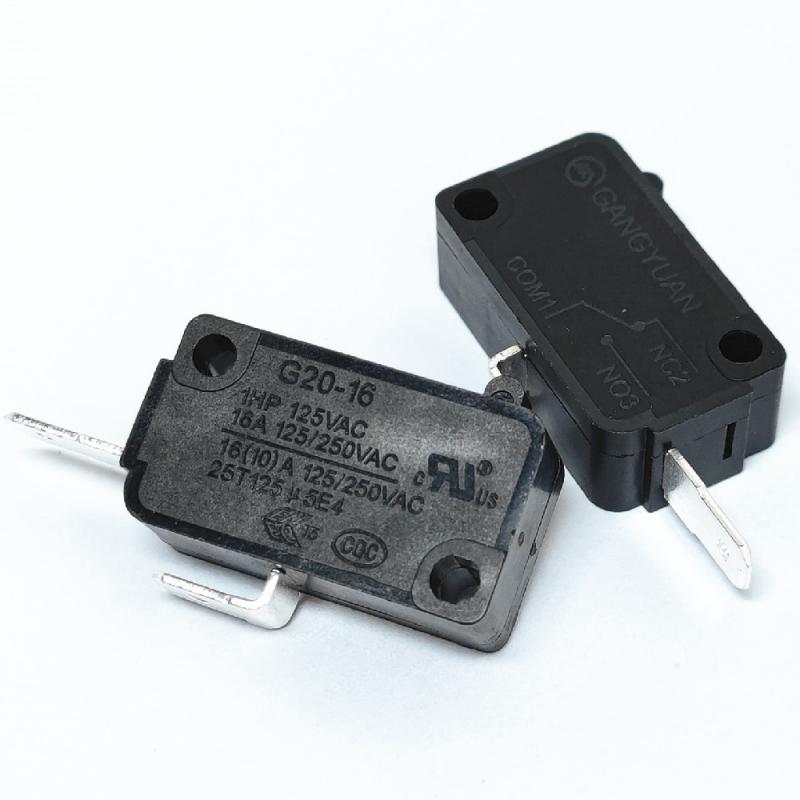

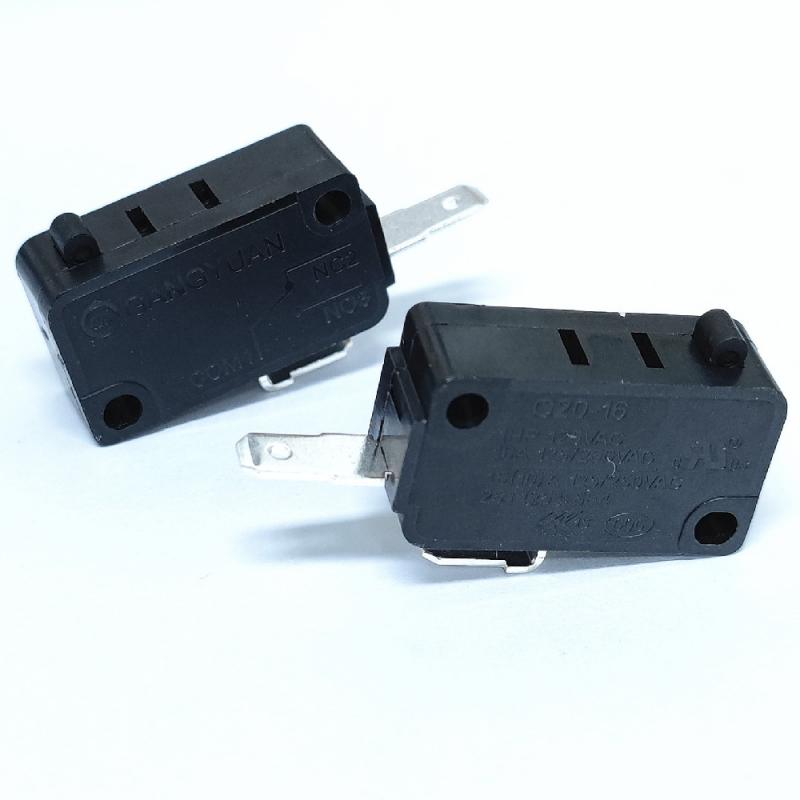

Miniature Snap-Action Switch 16a 250v Micro Switch

This micro switch can safely carry 16A of current, can easily meet the working requirements of various electrical equipment, and effectively ensure the smooth operation and safe use of the circuit.

Brand:
Gangyuan
Item NO.:
G20-16DN-150-1141
Order(MOQ):
100
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
Black
Shipping Port:
Ningbo/Shenzhen
Lead Time：
7-14 Working Days For Payment

Outline (mm)
27.80mm x 15.90mm
Mounting Type
Through Hole
lllumination
Non-llluminated
IP Rating
IP4X

Product Detail

Momentary 25T125 0.8mm Quick Connect Micro Switch for Rice Cooker

Parameter

Type: UL Certified Micro Switch

Operating Temperature Range: -25℃～+125℃

Voltage Rating:125/250V AC
Current Rating: 16A
Contact Resistance:≤200MΩ

Insulation Resistance:≥100MΩ
Dielectric Withstanding Voltage:1500V AC 1Min

Soldering Temperature: 260士5℃ 5s
Operating Force : 150士50gf
Life Time (mating cycles):10000 Cycles

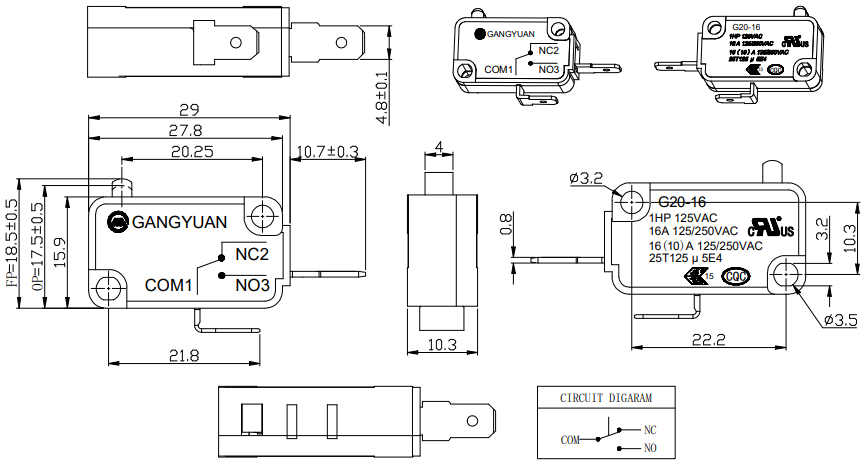

Drawing

Application

Home appliances: Suitable for washing machines, rice cookers, microwave ovens and other home appliances, it can realize various functional control of the equipment,

such as washing and dehydration switching of washing machines, and cooking and keeping warm switching of rice cookers.

Industrial field: It can be used in automated production lines, machine tools, etc. to achieve automatic control and protection of equipment, such as controlling the start

and stop of conveyor belts and the replacement of machine tool tools.

Automobile field: Applications in automobile doors and windows, seat adjustment, lighting control, etc.

Lighting field: It can be used for switch control of large lighting equipment to ensure the stable operation of the lighting system.
