Miniature Size Power Relay

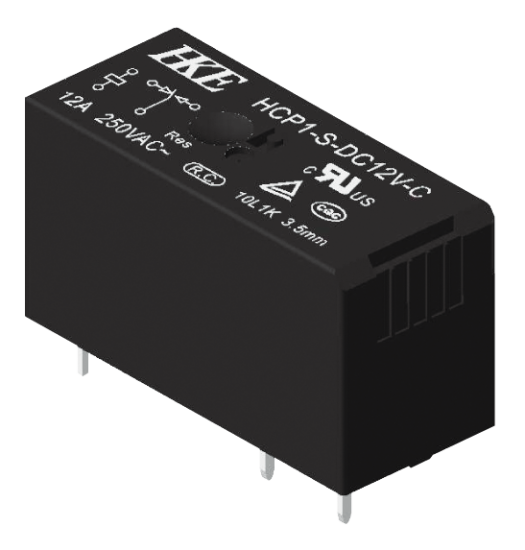

12A 6Pin Protective Usage and Low Power Contact Miniature Size Power Relay

  • Brand:

    HKE
  • Item NO.:

    HCP1
  • Order(MOQ):

    50
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    3 Working Days after payment
  • Product Detail


12A 6Pin Protective Usage and Low Power Contact Miniature Size Power Relay


Basic Information

Contact Form

1 Form A, 1 Form C

Contact Material

Ag Alloy

Contact Rating

Resistive:12A 250VAC/30VDC Inductive:5A 250VAC Cosφ=0.4

Contact Resistance

Max. 100mΩ (6VDC 1A)





Load

Max. Switching Voltage

440VAC/120VDC

Max. Switching Current

12A

Max. Switching Power

3,000VA, 360W

Min. Switching Load

5VDC, 100mA





Life

Electrical

100,000 operations

50,000 operations

(Inductive: Cosφ=0.4, L/R=7ms)

Mechanical

20,000,000 operations


Insulation Resistance

Min. 1000MΩ 500VDC

Dielectric Strength

Between open contacts

1,000VAC, 1min



Between coil and contacts

5,000VAC, 1min

Operate Time

Max. 10ms

Release Time

Max. 5ms

Operating Temperature

-40℃ to +85

Humidity

35~95 RH, +40

Shock Resistance

Endurance

1,000m/s2



Misoperation

100m/s2

Vibration Resistance

Endurance

10~55Hz, 1.5mm double amplitude



Misoperation

10~55Hz, 1.5mm double amplitude

Weight

Approximately 13.00g


Dimension

reed relay vs mechanical relay.jpg

reed relay vs mechanical relay.jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
