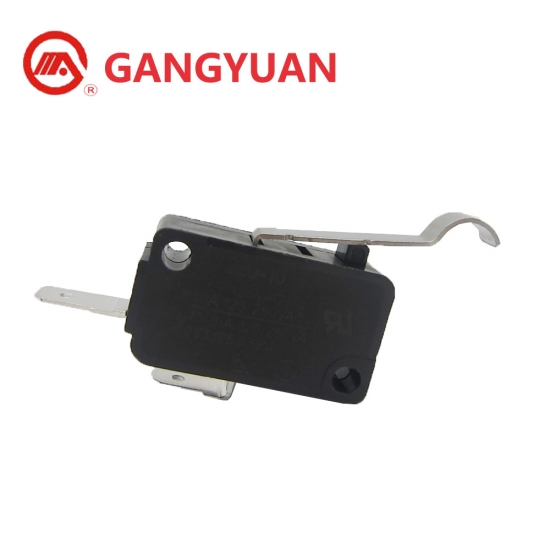

Home Switch Micro switch G20 Series mini zippi limit micro switch

mini zippi limit micro switch

Long mechanical Life16a 125/250v mini zippi limit micro switch

  • Brand:

    Gangyuan
  • Item NO.:

    G20-16EN03-70-07
  • Order(MOQ):

    50 pcs
  • Payment:

    T/T
  • Product Origin:

    zhejiang/shenzhen
  • Color:

    black
  • Shipping Port:

    ningbo or shenzhen
  • Lead Time:

    3 Working Days after payment
  • Product Detail

Long mechanical Life16a 125/250v mini zippi limit micro switch

Basic Information

Model Name

Micro Switch

Model No.:

G20-16EN03-70-07

Operating Relative Humidity ≤85%

Operating Temperature

-25℃~125℃

Dielectric withstanding Voltage

1500V AC 1Min

Voltage Rating

250V AC

Current Rating

16A

Operation Force

70±50gf


Dimension

micro switch schakelaar tot 250 c.jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
