Home Switch Micro switch G20 Series Micro switch ultra subminiature limit switch

Micro switch ultra subminiature limit switch



This Micro Switch is free from overtravel restrictions, permit easy setting



  • Brand:

    Gangyuan
  • Item NO.:

    G20-16CM03-150
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T before production
  • Product Origin:

    Zhejiang
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 working days
  • Product Detail



Product item:Ultra Subminiature Limit Switch



Snap action contacts have different trip and reset points. The distance between the trip and reset point is called the travel to reset, hysteresis, or differential. Finite travel to reset helps to avoid multiple changes of state if the object actuating the switch is subject to vibration


General characteristic:

Rating

 16A,125/250V AC

Operation Temperature

-25℃±125℃

Electrical life

50,000 cycles

Mechanical life

100,000 cycles

Operation force

150±50gf(MAX)

Contact resistance

≤200mΩ MAX

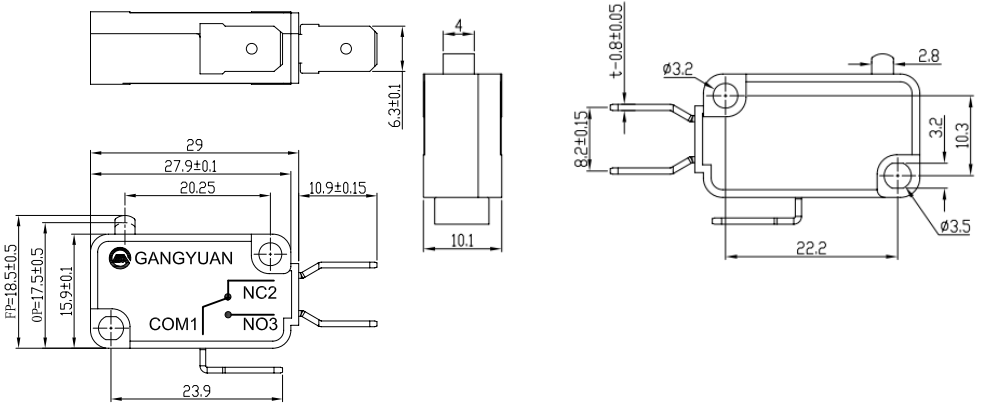

Dimension:
