The Rocker Switch is a common and classic manual electrical switch. It is widely used in various electrical appliances, industrial equipment, automotive electronics, and household appliances to control the on/off function of circuits or switch functions.
Brand:
GangyuanItem NO.:
KCD11-101AOrder(MOQ):
500pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
BlackShipping Port:
Ningbo/ShenzhenLead Time：
7-14 working days for paymentOutline (mm)
21.00mm x 15.00mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating

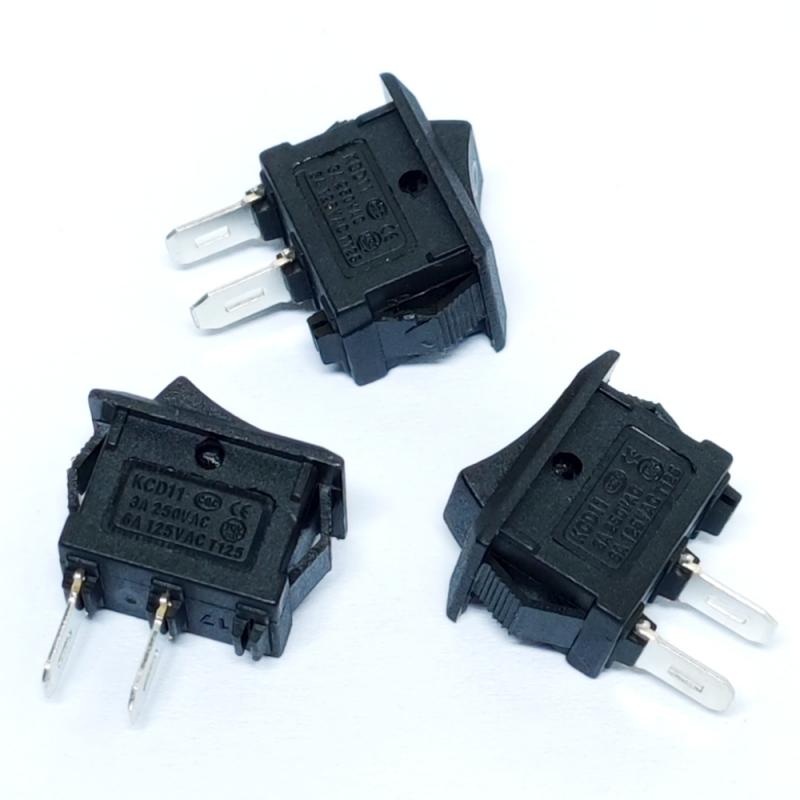

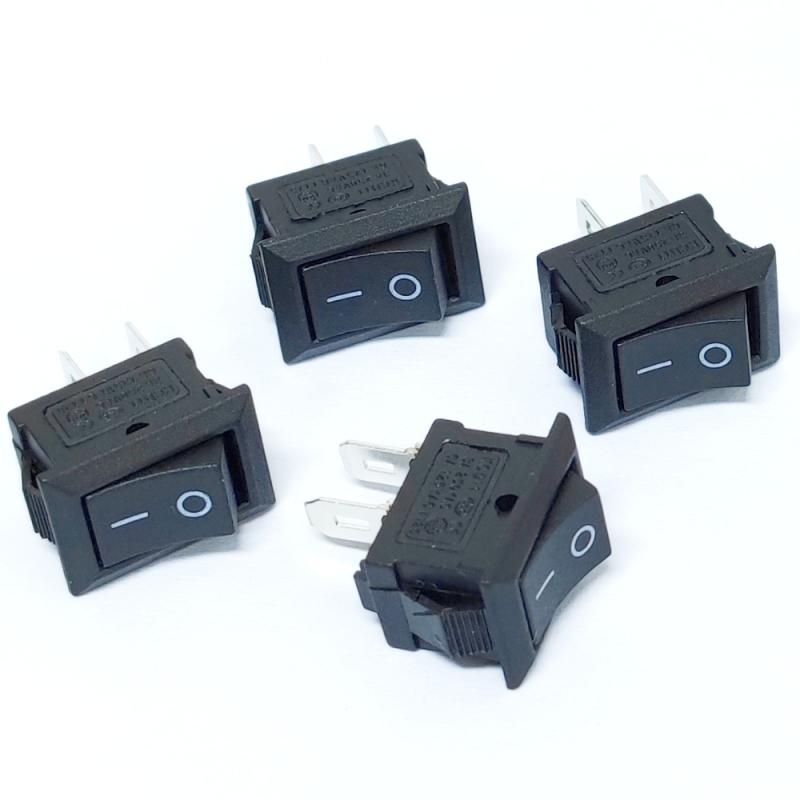

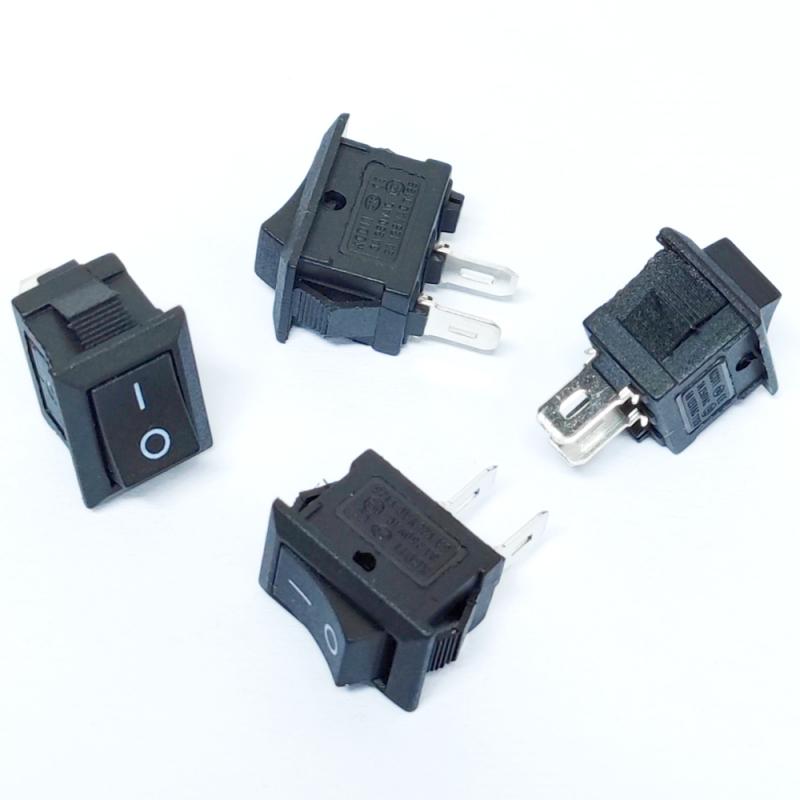

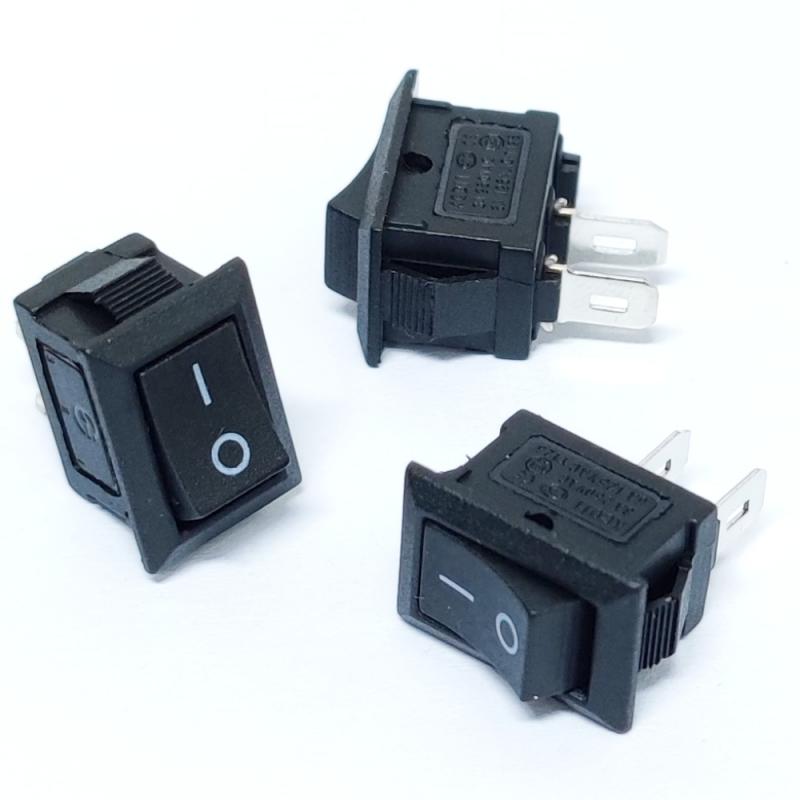

No IP Rating2 Terminal Rocker Switch ON OFF 2 PIN
Feature
Type:15*10.5 Miniature Rocker switch
Ratings:1A 250V AC
Contact Resistance: ≤500mΩ
Insulation Resistance: ≥100MΩ
Mechanical Life: ≥10,000 cycles
Rocker switch Actuator Type: Rectangle

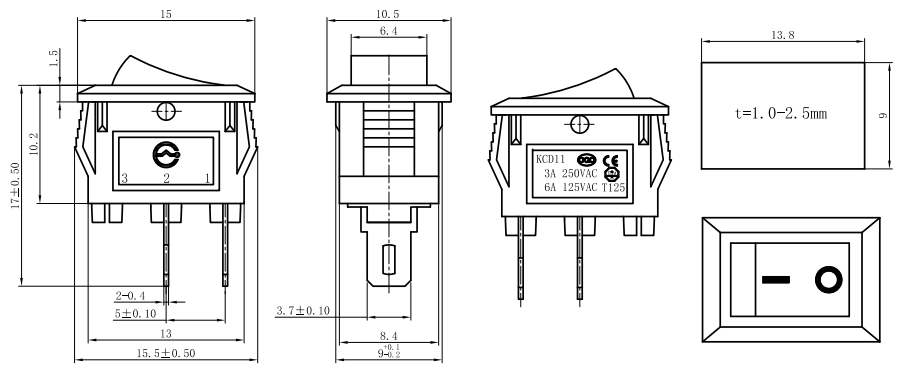

Rocker switch body dimentions
Common uses
Types of rocker switch
DPST rocker switch Round rocker switch illuminated rocker switch Rectangular rocker switch
The product automation coverage rate isover 85%,ensuring stable product quality and reliable delivery time.
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
