isuzu car relay 40a 12V auto relay

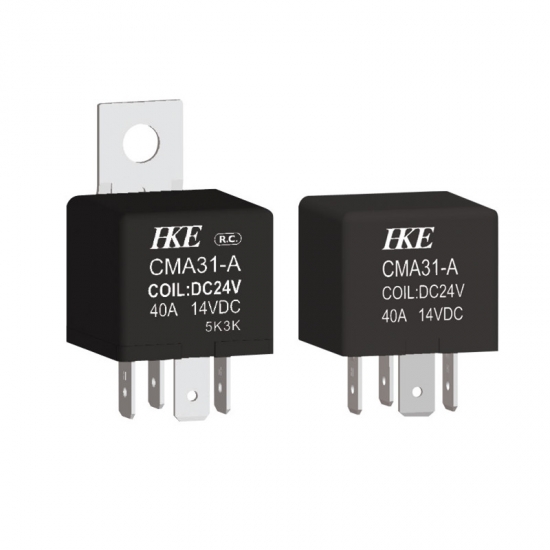

Hot Selling 4 pin 24v isuzu car relay 40a 12V auto relay

  • Brand:

    Gangyuan
  • Item No.:

    CMA31
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 Working Days after payment
Product Details

Hot Selling 4 pin 24v isuzu car relay 40a 12V auto relay



Product Description:

  • automotive relay
  • Dimensions: 27.8×27.8×24.6(mm)
  • Switching capacity 40A
  • Available in 2 mounting options, socket or bracket mount Applications: air compressor, heater, fan motor, blower fan, defogger.

Contact Form

1 Form A, 1 Form B, 1 Form C

Contact Material

Ag Alloy

Contact Rating (Resistive)

12VDC: 40A14VDC (A)

30A14VDC (B)

30A14VDC (C)

24VDC: 20A28VDC (A)

10A28VDC (B) NO/NC:20A/10A28VDC(C)

Contact Resistance

Max. 100mΩ (6VDC 1A)



Load

Max. Switching Voltage

75VDC



Max. Switching Current

Refer to table1



Max. Switching Power

420W(C), 560W(A)



Life

Electrical

100,000 operations



Mechanical

10,000,000 operations



Insulation Resistance

Min.100MΩ 500VDC

Dielectric Strength

Between open contacts

550VAC,1min



Between coil and contacts

550VAC,1min

Operate Time

Max.10ms

Release Time

Max.10ms



Max.20ms(With Diode)

Operating Temperature

-40 to +85℃,-40 to +125(T)

Humidity

35~95 RH,+40

Shock

Endurance

1,000m/s2

Resistance

Misoperation

100m/s2

Vibration

Endurance

10~55Hz, 1.5mm double amplitude

Resistance

Misoperation

10~55Hz, 1.5mm double amplitude

Weight

Approximately 37.0g (Bracket)

Approximately 32.0g (Without Bracket)



Dimension:
