Home Switch Tactile switch 40 Series tact switch Illuminated miniature hotsales smd tactile switches

Illuminated miniature hotsales smd tactile switches

Gangyuan illuminated miniature hotsales smd tactile switches

  • Brand:

    Gangyuan
  • Item NO.:

    KAN4241-0621B
  • Order(MOQ):

    3000pcs
  • Payment:

    EXW
  • Price Range:3000 - 12000/$0.028
  • Product Origin:

    Zhejiang ,China
  • Color:

    white or natural
  • Shipping Port:

    Shanghai ,Shenzhen
  • Lead Time:

    7-10 working days
  • Product Detail

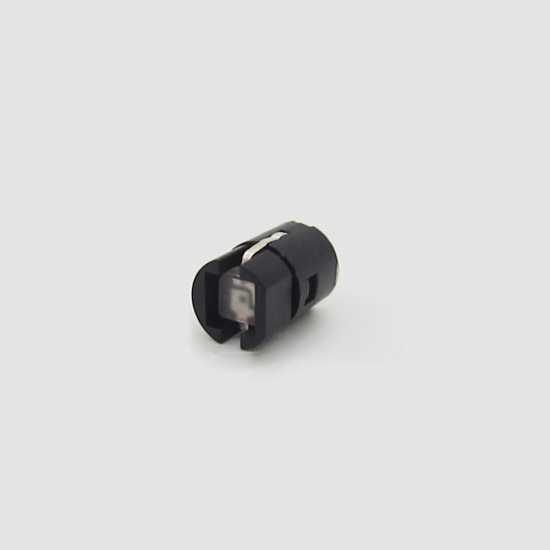

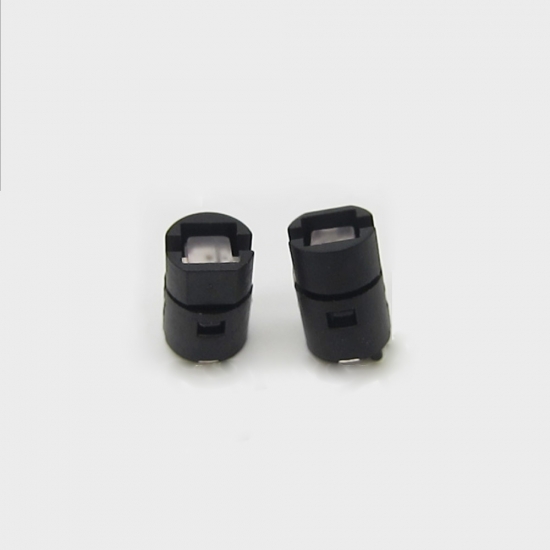

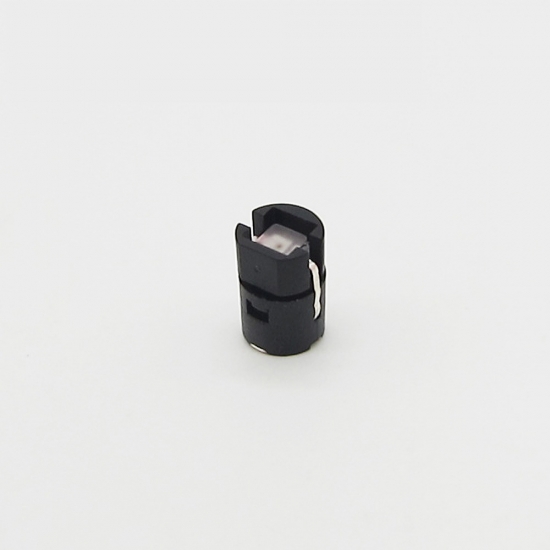

Illuminated miniature hotsales smd tactile switches


Quick details:

Model Number: KAN4241-0621B
Type: SMD
Terminal: sliver plating
Soldering type: wave soldering
Salt Mist: 8h±1h
Operation life: 50,000 cycles
Certification: UL,ROHS,SGS
Damp proof tape: no
Protection Level: normal
Max. Current: 50mA
Max. Voltage: 12V

Package Type:
3000pcs/reel, 20 reel/carton, carton size: 44*34*34cm, GW: 111 KGS, N.W. 9.7 KGS

Leadtime :
MOQ or sample in 5-7 working days
Mass production: 10 working days

Certifications:
Factory certificate: TS16949,ISO9001,ISO14001,OHSA18001
Products: CE,ROHS, UL, REACH, ENEC, CQC,CCC


Supply Ability

200000 Piece/Pieces per Week


FAQ:
Q1: Where is your factory located ?
 A:We have three factories locates in Wenzhou,Hubei and Shenzhen

Q2: Is free samples available ?
 A: Sure

Q3:How to deal with the quality control ?
 A:  1) Factories all passed the certificate of TS16949,ISO9001,ISO14001,OHSA18001
        2) Supply kinds of tactile switch for famous brand such as SAMSUNG,LG,PANASONIC, MIDEA, HISENSE, SCHNEIDER, ARCADUAN,FLYCO, OMARON, CANON for more than 24 years.
        3) The the defected rate of production can be controlled within less than 0.1 %. once problem happen, we will offer you problem solution within 8 hours once get complaint and deal with the problem at customer processline or online guide.

You will find what you want in our factory.
