Home Switch Rocker switch illuminated 3pin rocker switch

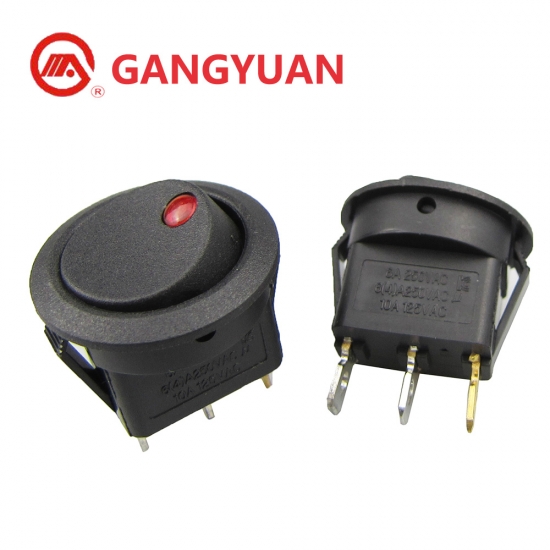

illuminated 3pin rocker switch

16A/250VAC t85 55  illuminated 3pin rocker switch

  • Brand:

    Gangyuan
  • Item NO.:

    RS601C1-101N171BB
  • Order(MOQ):

    10pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black and red
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    14 working days for payment
  • Product Detail

16A/250VAC t85 55  illuminated 3pin rocker switch

Basic Information

Model Name:

Rocker switch

Model No.:

RS601C1-101N171BB

Dimension:

23mm

Rating:

6A, 250V

Contact Resistance:

20mΩ max

Insulation Resistance:

500VDC 100MΩ min

Dielectric Strength:

1500VAC,1Minute

Operating Temperature:

-25℃~+85℃

Electrical Life:

>10000 Cycles

Certifications:

CE,CQC,ROHS,VDE


Dimension

rocker light switch.jpg

round rocker switch.jpgHTB15k8WjVXaC.jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact s

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
