Home Switch Rocker switch Customized Led rocker switch

Customized Led rocker switch

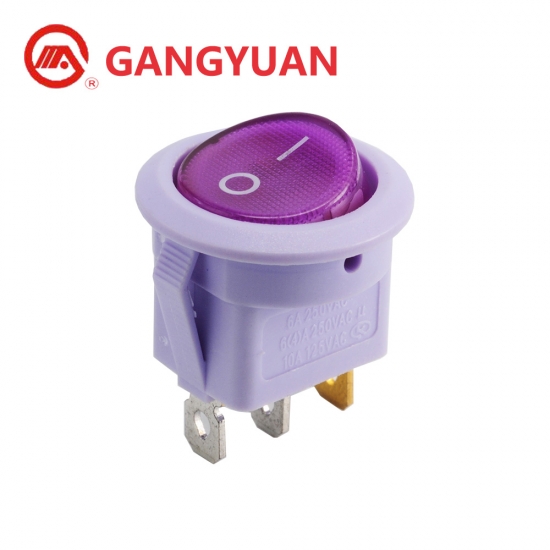

Customized Led light color 8A 250V wiring Diagram 3 pin rocker switch

  • Brand:

    Gangyuan
  • Item NO.:

    RS601C1-101P011P1B
  • Order(MOQ):

    10pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black and violet
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    3 working days for payment
  • Product Detail

Customized Led light color 8A 250V wiring Diagram 3 pin rocker switch

Basic Information

Model Number: RS601C1-101P011P1P
Max. Current: 8A
Max. Voltage: 250V AC
Mechanical Life: 10000 cycles
Product Type: On-off 8 a 250v Ac
Function: ON-ON, ON-OFF, ON-OFF-ON
LED Color: Red,green,blue,yellow customerized
Light voltage: 3-220V
Dimension: 21x15mm

Dimension

 on off on rocker switch.jpg

custom rocker switches.jpgHTB1pd76311XXag.png


Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact s

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
