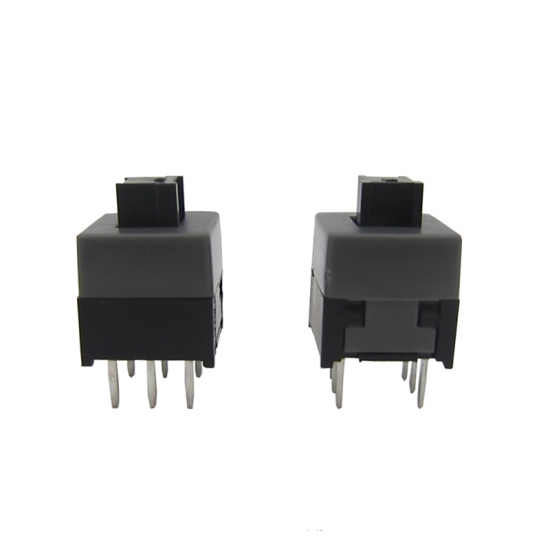

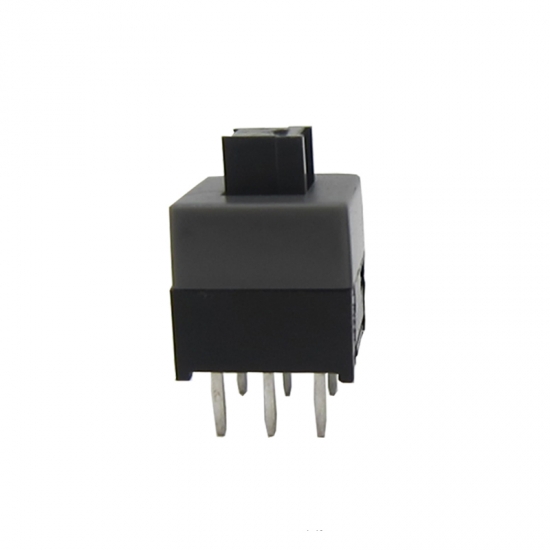

8.3x8.3 6pin push button self lock switches electrical

push button switch 3 way 120 volts led

  • Brand:

    Gangyuan
  • Item No.:

    PB21E09171-0107
  • Payment:

    T/T before shipment
  • Product Origin:

    China
  • Color:

    black or grey
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000
  • Lead Time:

    3 Working Days after payment
Product Details

8.3x8.3 6pin push button self lock switches electrical


Basic Information

P/N
PB21E09171-0107
Dimension
8.3x8.3mm
Rating current
DC 30v 0.1A
Operating force
230±70gf
Life cycles
10,000cycles
Travel

2.5±0.2mm

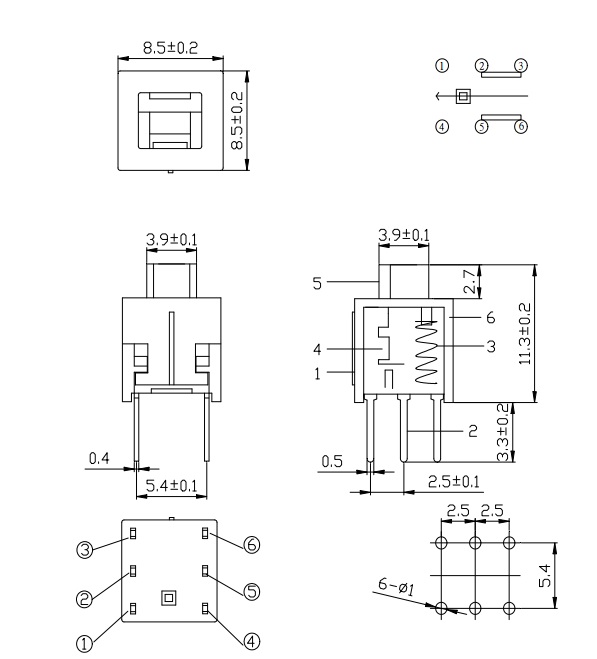

Outline Drawing



Our advantage

1. Excellent R&D team, clients design requests are welcome.


2. Experience of more then two decades in switch manufacturing.

3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system

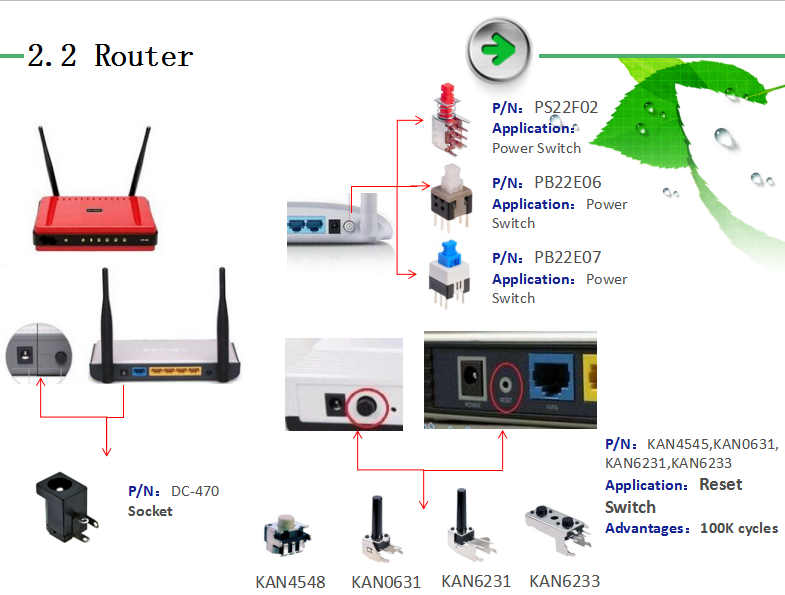

Application

Used in the fields of electronic products,setupbox, household appliances and more. High precision mechanism design offers acute operation and long service life.
