Home Switch Non locking Switch 7x7mm self-locking push button switch

7x7mm self-locking push button switch

Self-lock switch normally means switch with built-in mechanical lock function. Press down the switch and then release, it will not fully bounce up because it is locked. You have to press it again, then it will be unlocked and fully bounce up. This is the so-called Self-lock Switch.

  • Brand:

    Gangyuan
  • Item NO.:

    PB22E07431-0753
  • Order(MOQ):

    1000
  • Payment:

    100% T/T Before Production
  • Product Origin:

    China
  • Color:

    Black, Blue, White
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 Working Days For Payment
  • Product Detail

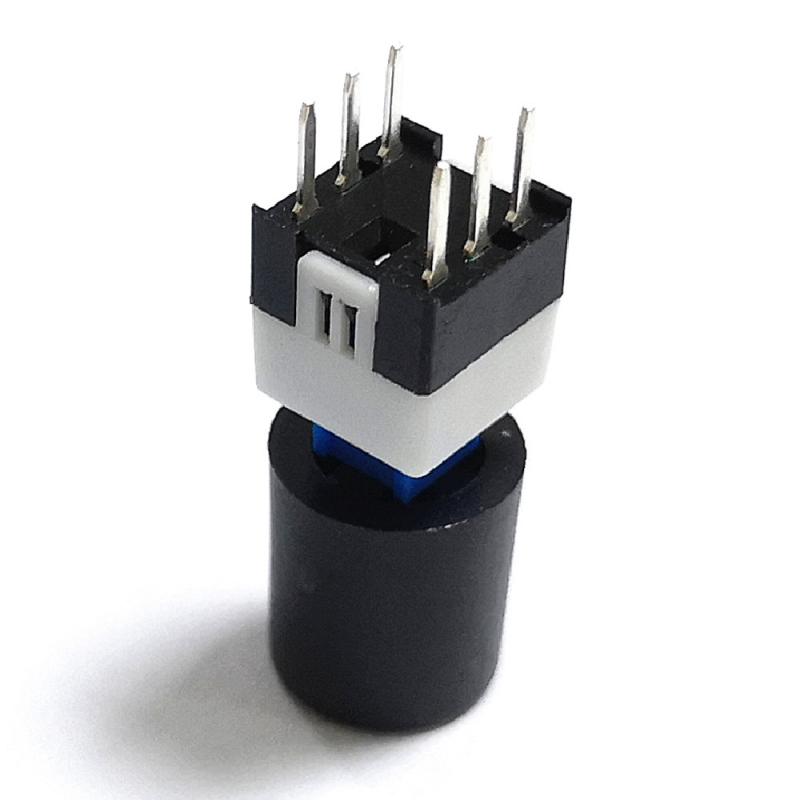

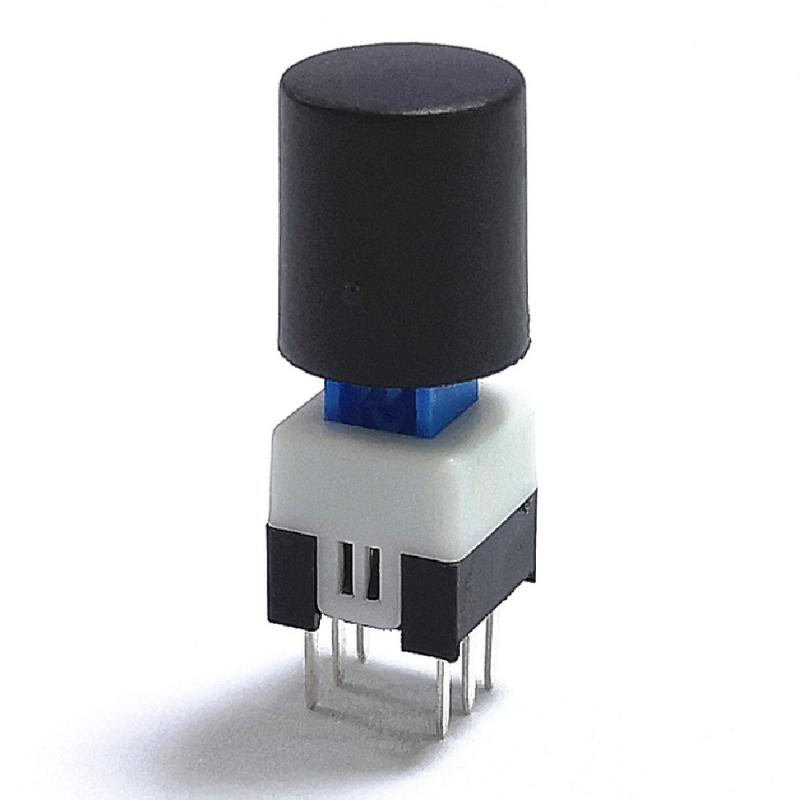

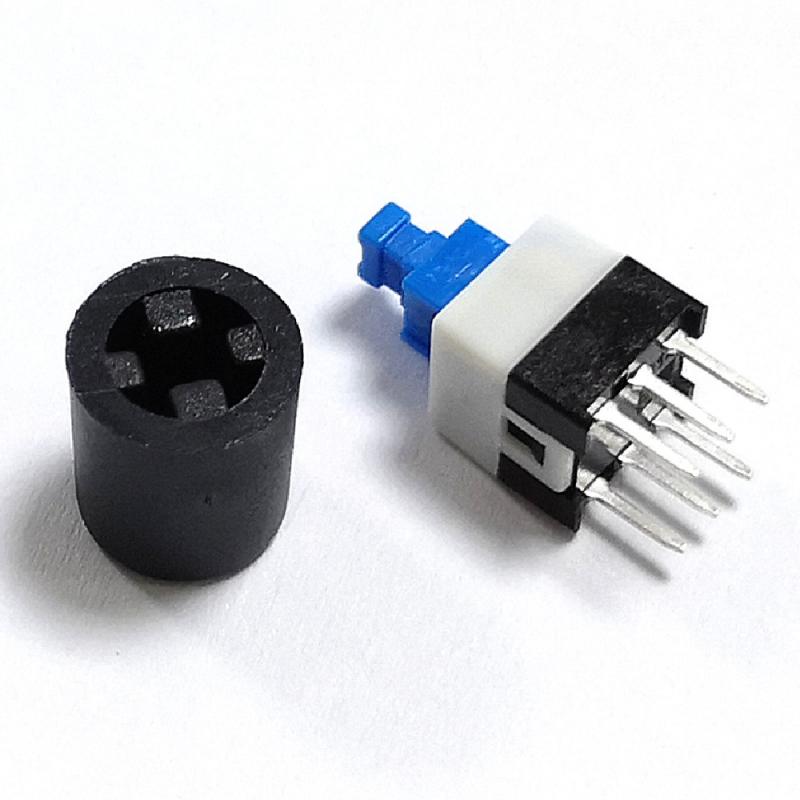

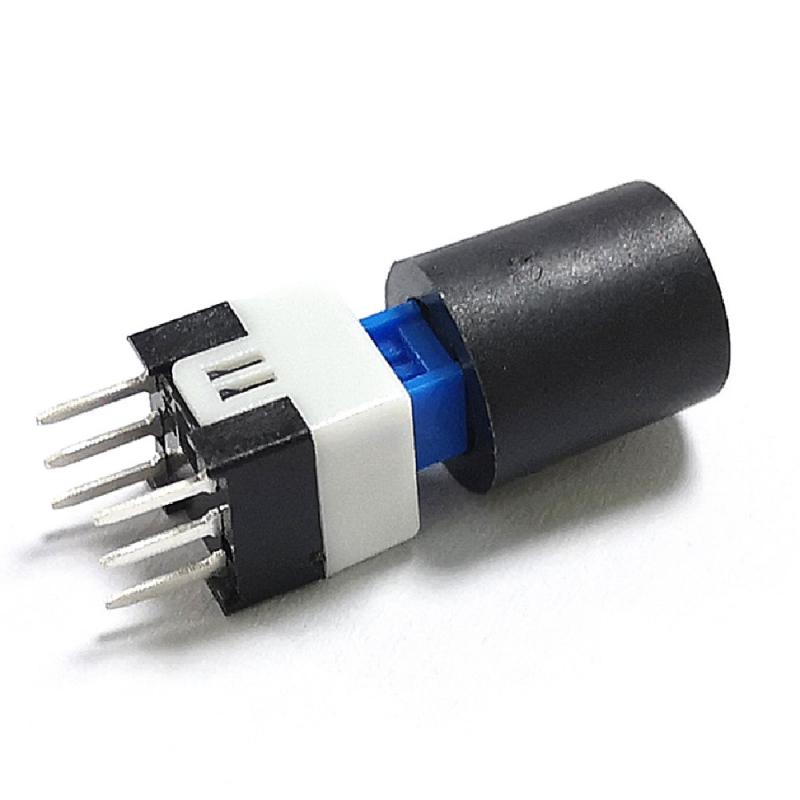

DPDT dip panel 7*7mm cap self locking switch


 Product Parameter


Product Name: Self lock Push button switch

Ratings: DC 30V 0.1A

Contact Resistance:≤100mΩ

Insulation Resistance:≥100MΩ

Full Travel: 2.2±0.2mm

LOCK Travel:1.2±0.2mm
Size: 7x7mm

Life:5000 cycles

Pin:6 PIN

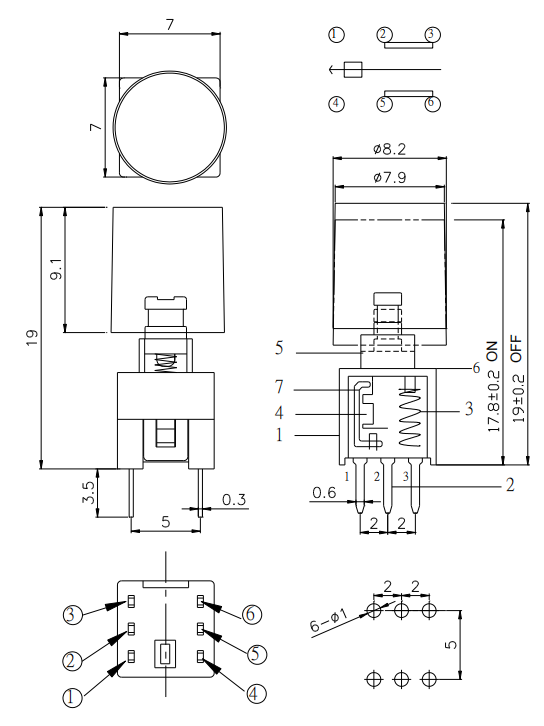

 Drawing



 How does a self-locking switch work?


The self-locking switch with cover is a device that locks its circuit switch state through the mechanical device of the switch itself.

When you press the first button, the button is pressed and the circuit is turned on when you Press the button to bounce and the circuit is disconnected.

 Other type



 FAQ


     1. Q: Are you switch manufacture/ factory? Location?

          A: Yes, three palnts located in Shenzhen , Zhejiang, Hubei province.

      2. Q: Can I get free sample before placing an order ? MOQ?

          A: Yes, free samples will get ready within 3~5 days. About tact switch, MOQ is 1,000pcs.

      3. Q: What about the delivery time?

          A: Stable delivery. 7-15 working days.

      4. Q: What about terms of payment ?

          A: T/T, L/C, Paypal, Cash etc.

      5. Q: Can you customize products according to the design drawing?

          A: We have independent R&D center in Shezhen, ODM/OME project is welcome.

      6. Q: Do you test all your goods before delivery?

          A: Yes, we have 100% test before delivery.
