Home Switch Non locking Switch 6 Pin Latching Push Button Switch

6 Pin Latching Push Button Switch

Self-locking switch is a common push button switch in our daily life, which is widely used in household appliances.

  • Brand:

    Gangyuan
  • Item NO.:

    PB22E06081-4850
  • Order(MOQ):

    1000
  • Payment:

    100% T/T Before Shipmen
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 Working Days For Payment
  • Outline (mm)

    5.80mm x 5.80mm
  • Mounting Type

    Through Hole
  • lllumination

    Non-llluminated
  • IP Rating

    No IP Rating
  • Product Detail

ON-OFF Self-locking Mini Push Button Switch Factory


Product Description


Product Name
Self lock/Non lock push button switch
Contact arrangement
2 pole,2 throw
Rating
0.1A DC30V
Operating force
250 ±100gf
Full travel
2.1± 0.2mm
Life
10000 cycles
Pin
6 PIN

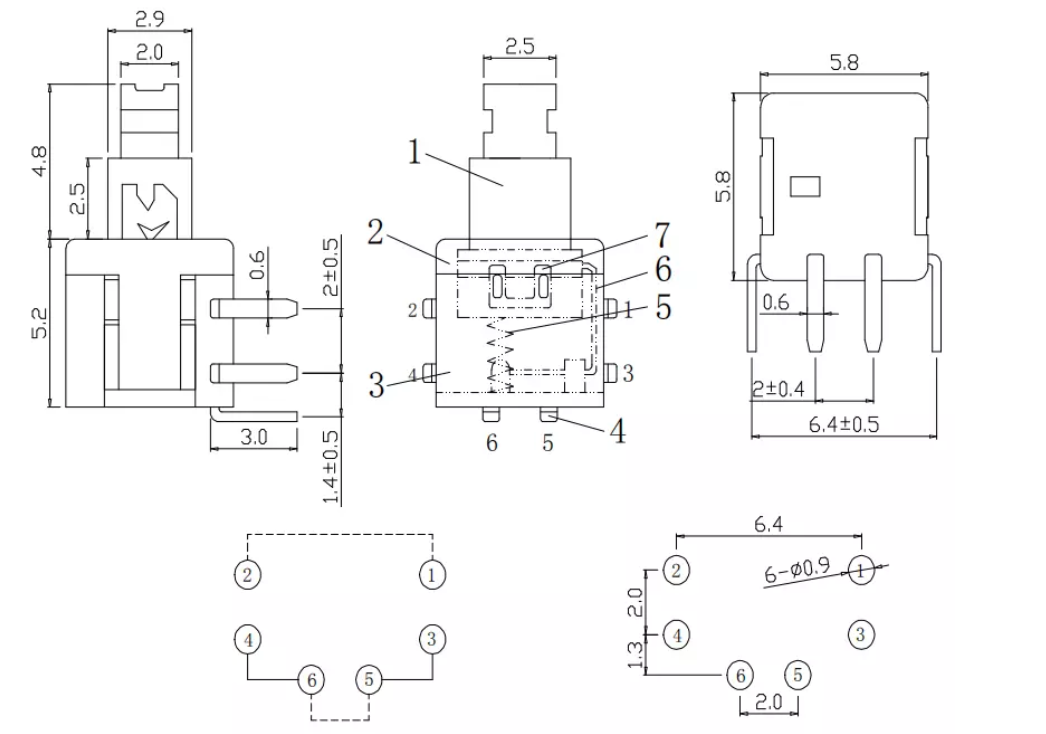

Product Dimension





What is a self-locking switch?


The self-locking switch generally refers to the switch with its own mechanical locking function. After pressing it, the button will not jump up completely after releasing it. It is in the locked state and needs to be pressed again to unlock it and jump up completely. It is called a self-locking switch.


Application of self-locking switch


Industrial automation control in various industries, such as: machinery automation control, clothing machinery control, textile machinery control, food machinery control, electrical appliance control, home appliance control, manipulator, lighting control, energy saving control, traffic control, fountain control, injection molding machine control, motor control And other popular fields of automation control.


FAQ


Q1: Where is your factory located ?
  A:We have three factories locates in Wenzhou,Hubei and Shenzhen.


Q2: Is free samples available ?
   A: Sure


Q3:Why choose Gangyuan?

   A: We promise: All our products have quality assurance, and have high quality and competitive prices. We have the best after-sales service to ensure you receive the goods satisfactorily.
