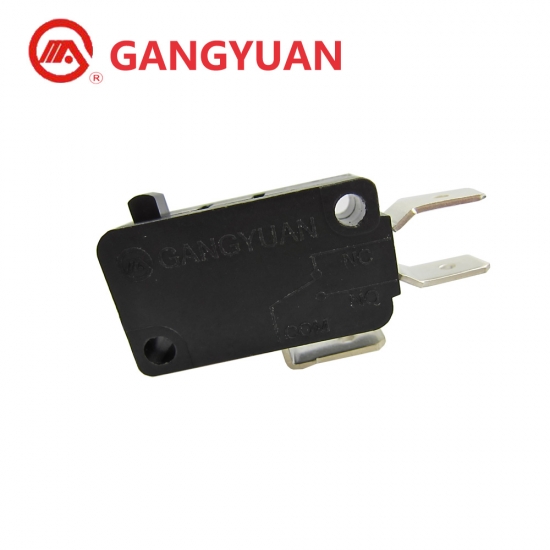

Home Switch Micro switch G20 Series 5e4 snap action micro switch kw3a

5e4 snap action micro switch kw3a

lever customize solder connect 5e4 snap action micro switch kw3a

  • Item NO.:

    G20-16CM-150
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 Working Days after payment
  • Product Detail

lever customize solder connect 5e4 snap action micro switch kw3a


Basic Information

Model Name:

Micro Switch

Model No.:

G20-16CM-150

Dimension:

29x10.1x15.9mm

Operating Temperature

-25℃~125℃

Dielectric withstanding Voltage

1500V AC 1Min

Voltage Rating

250V AC

Current Rating

16A

Operation Force

150±50gf


Dimension




Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
