5a pcb relay

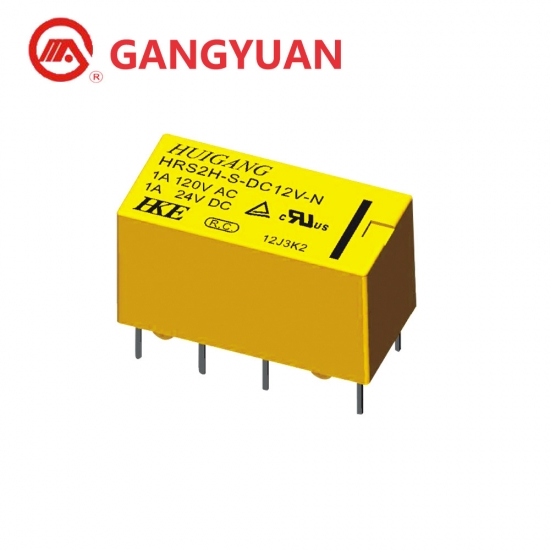

Low price normal open 8pin high voltage relay 5a pcb relay

  • Brand:

    HKE
  • Item No.:

    HRS2H-S-DC12V-N
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    yellow
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    10pcs
  • Lead Time:

    3 working days for payment
Product Details

Low price normal open 8pin high voltage relay 5a pcb relay


Basic Information

Contact Form a set normal open   Contact Material Ag Alloy
Coil Voltage 3-48VDC Max switching Voltage 1250VA,150W
Dielectric 1,000V Certification TUV CQC VDE
Opeartion temperature       -40~85℃ Mechanical 10,000,000

Dimension

china relays supplier.jpg

auto relay 12v 40a.jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
A free consultation

Email us with any questions or inquiries or use our contact data. We would be happy to answer your questions.

  • If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!

Related Product
Transparent Cover Power Relay
Transparent Cover AC/DC PCB Power Relay

Dimensions: 27.6×21.6×35.0(mm) Available in various types mounting terminals Contact form : 2A, 2B, 2C, 3A, 3B, 3C, 4A, 4B, 4C Transparent cover AC/DC Coil

Signal Relay
Microminiature High Sensitive Signal Relay

Microminiature relay Dimensions: 15.6×10.6×11.8 (mm) High sensitivity Contact: 1 Form C Max. Switching capacity 3A

Power Relay
UL Class F Insulation Miniature Relay

Miniature relay Dimensions: 19.0×15.5×15.8(mm) Contact: 1 Form A, 1 Form B, 1 Form C TV-5 rating UL Class F insulation

Power Relay
DC Power Relay Availble in PCB

High contact capacity, up to 30A/250VAC Dielectric strength of 2500V between coil and contacts Available in both PCB and quick connect terminals Exposed or concealed quick connect terminals Applications: industrial and home appliances, HVAC, etc

Automotive Relay
HKE Miniature Automotive Relay CMA2

Miniature automotive relay Available in both open frame and plastic sealed package Sealed: 17.3×14.8×19.5(mm) Open: 15.7×12.7×17.7(mm) Numerous contact arrangements High switching capacity 20A

dc power relays
HKE Brand Auto Relay 12v 40a Power Reply in Stock

Generl automotive relay. Dimension:27.8*27.8*24.6mm 40A switching current  Bracket type installtion can be adopted. A set normal open,a set normal closed,a set of transformation.
