Home Relay & Sensor 5 pin relay schematic

5 pin relay schematic

A relay is an electrically operated switch. It consists of a set of input terminals for a single or multiple control signals, and a set of operating contact terminals.

  • Brand:

    HKE
  • Item NO.:

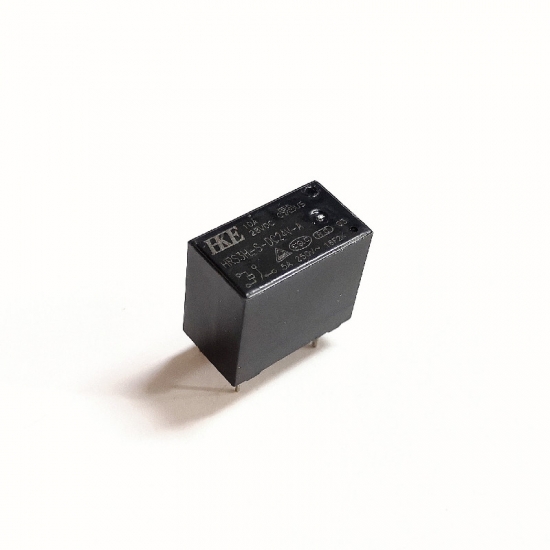

    HRS3H-S-DC24V-A
  • Order(MOQ):

    100PCS
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 working days for payment
  • Product Detail

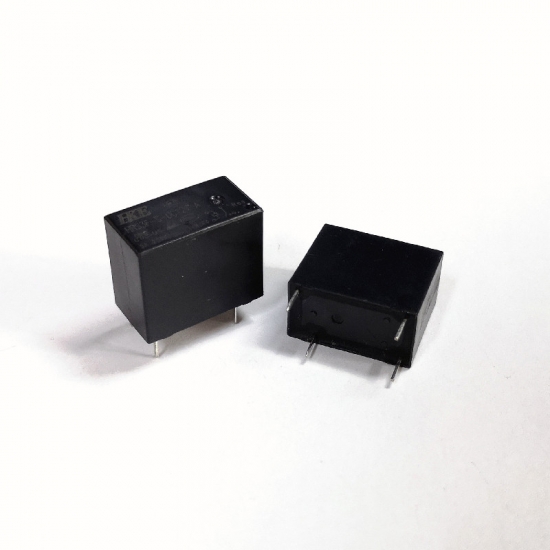

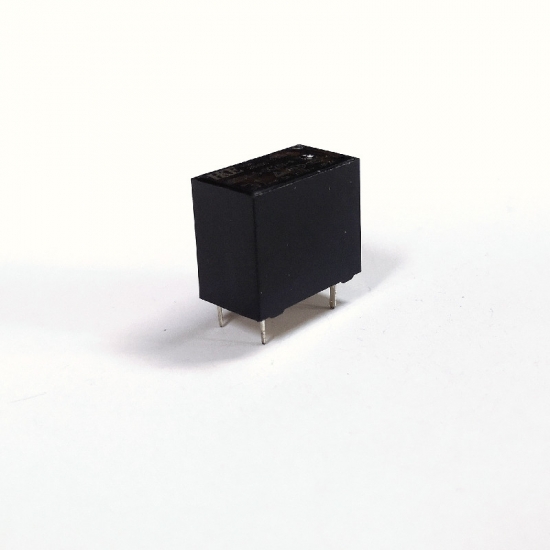

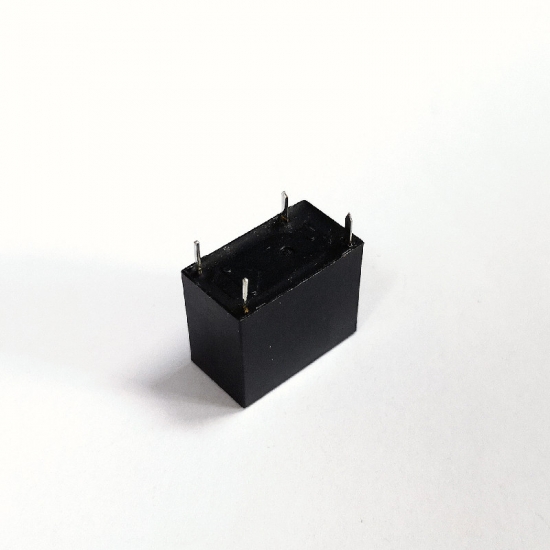

high sensitivity 24v microminiature relay module


  Basic Information


Product name
Microminiature relay
Dimensions
18.6×10.4×15.8(mm)
Coil Voltage
DC24V
Max. Switching Voltage
250VDC/28VDC
Max. Switching Current1
10A
Nominal Coil Power
200mW, 450mW
Mechanical Life
10,000,000 operations
Operating Temperature
-40℃ to +85℃
Contact Form
A - 1 Form A

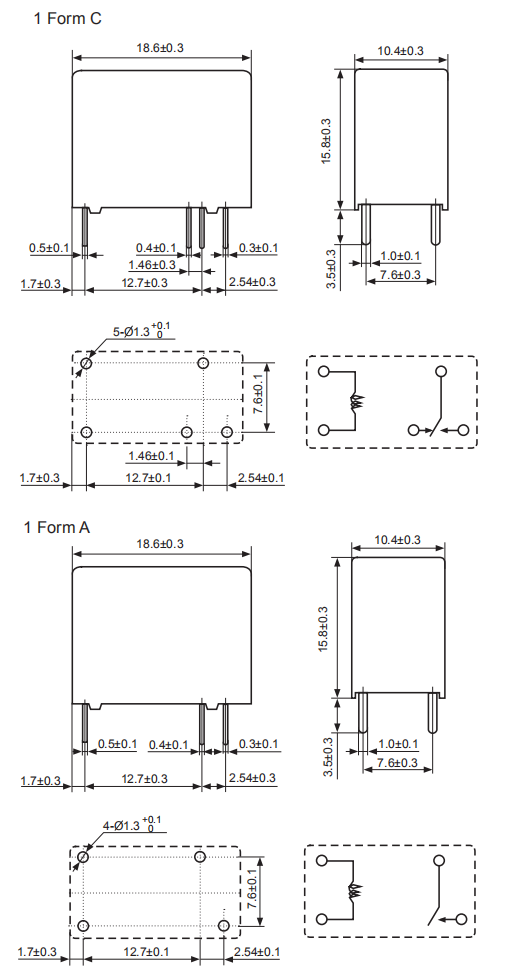

  Dimension





  Product features


1. Type: Power relay

2. Wide versatility and wide load range

3. The form of the terminal is varied

4. Maximum switching current up to 30A

5. Use ambient temperature range up to -40℃~105℃


  Our advantage


1. The factory has more than 20 years of experience in the field of switch manufacturing.

2. Variety of categories. More than 2000 models.

3. Good quality. Using raw materials imported from Japan and South Korea.

    More than 85% of product automated manufacturing coverage.

4. Excellent R&D team, clients design requests are welcome.

5. Two thousands invention patents and 47 utility model patents.

6. Assembly process in 100,000 grade dust-free workshop.
7. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

8. After-sales service team. Global radiation multiple service outlets.


 Relay Application


1. Industrial automation control: manipulator, power control, protection circuit.

2. Household appliances: microwave oven, TV, air conditioner, dishwasher, etc.

3. UPS power supply: protection circuit, switching circuit.

 FAQ


1. Q: Are you manufacture/ factory? Location?

    A: Yes, three palnts located in Shenzhen , Zhejiang, Hubei province.

2. Q: Can I get free sample before placing an order ? MOQ?

    A: Yes, free samples will get ready within 3~5 days. MOQ1,000pcs.

3. Q: What about the delivery time?
    A: Stable delivery. 7-15 working days.

4. Q: What about terms of payment ?

    A: T/T, L/C, Paypal, Cash etc.

5. Q: Can you customize products according to the design drawing?
    A: We have independent R&D center in Shezhen, ODM/OME project is welcome.

6.Q: How do you proceed order for relay?

   A: First let us know your requirements or application.

       Secondly we quote according to your requirements or our suggestions.

       Thirdly customer confirms the samples and places deposit for formal order.

       Fourthly we arrange the production.
