Home Relay & Sensor 5 pin 12V dc relay

5 pin 12V dc relay

differential relay HKE 5 pin 12V dc car overload Miniature electric phase failure relay

  • Brand:

    HKE
  • Item NO.:

    CMA-4
  • Order(MOQ):

    10pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    3 working days for payment
  • Product Detail

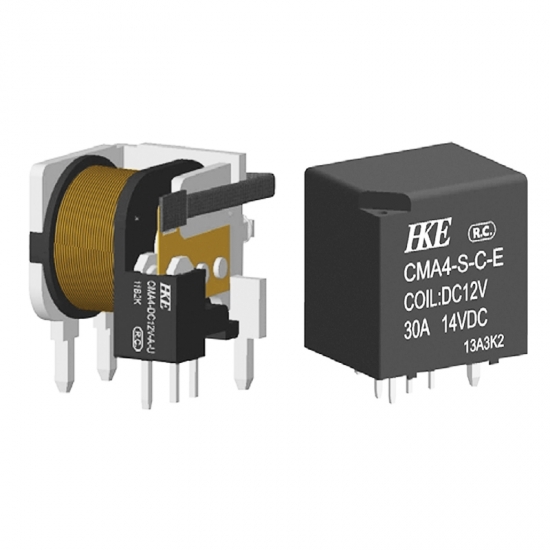

HKE 5 pin 12V dc car overload Miniature electric phase failure relay


Basic Information

Contact Form 1A,1C,1U,1V,1W Contact Material Ag Alloy
Coil Voltage 3-24VDC Max.Switching Current 20A
Color Black Certification TUV CQC VDE
Max.Switching Volt 75VDC Open 15.7×12.7×17.7(mm)
Coil Power 1.1W Sealed 17.3×14.8×19.5(mm)

Dimension

arduino relay.jpg

electromagnetic relay.jpg

5 pin relay.jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact s

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
