Home Switch Rocker switch 3 pin wiring t85 mini rocker switch

3 pin wiring t85 mini rocker switch

Round 3 pin welding wire safety rocker switch

  • Brand:

    Gangyuan
  • Item NO.:

    RS601H2
  • Order(MOQ):

    1
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    14 working days for payment
  • Product Detail

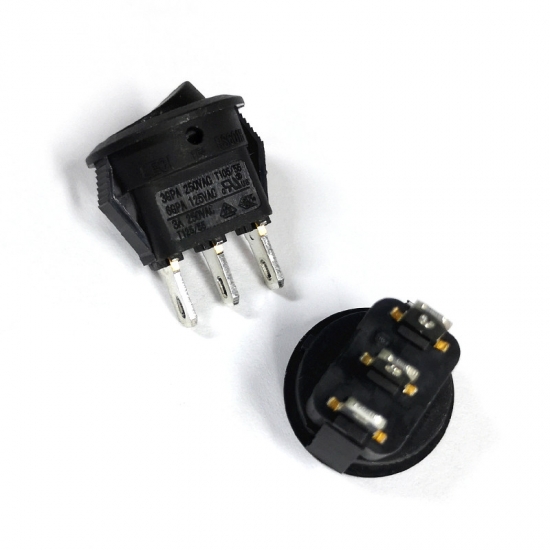

3 pin rocker switch wiring on on standard rocker switch

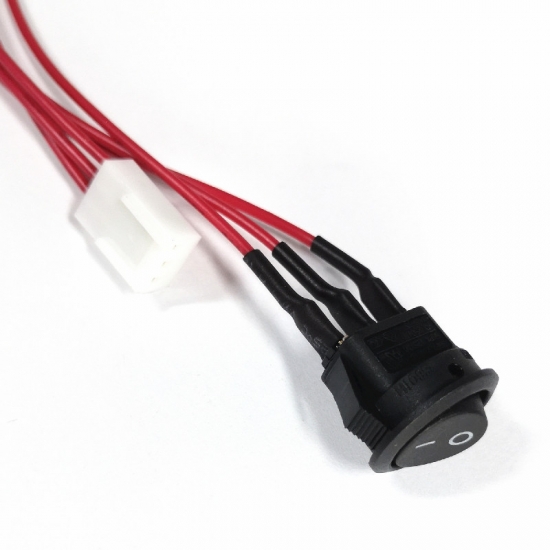

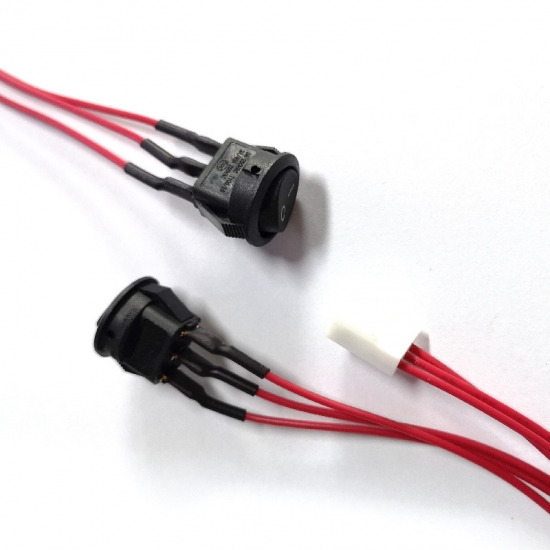

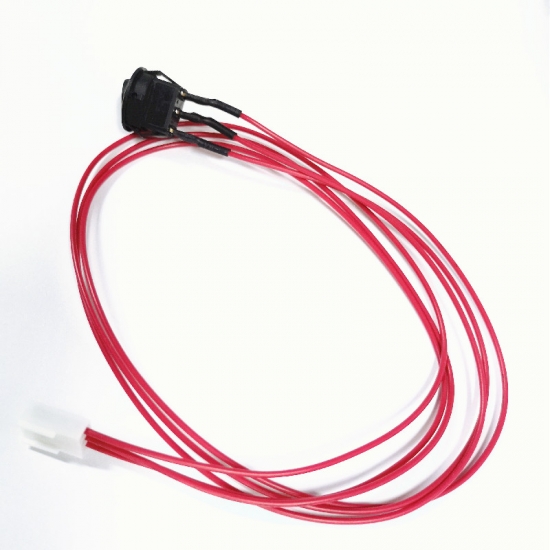

Soldering 3 red wires with white connectors electric Rocker Switches


  Basic Information


Product Name Rocker Switch
Rating 3A 250VAC
Insulation resistance ≥100MΩ
Contact resistance 50mΩ
Circuit Diagram 3P ON-ON
Life expectancy 10000 cycles
Terminal Strength ≥80N
Body Material NYLON 66 94
Packing


400pcs/bag

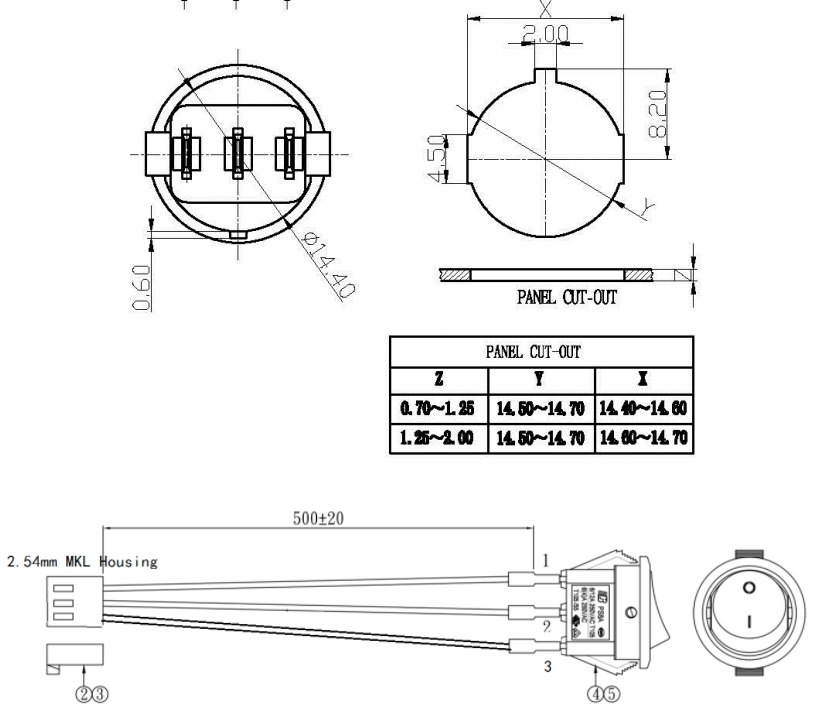

  Dimension

  Product features


1. Type: Rocker switch wiring

2. Line color: According customer requirement

3. Waterproof level: No

4. Pin: 3 pin


  Our advantage


1. The factory has more than 20 years of experience in the field of switch manufacturing.

2. Variety of categories. More than 2000 models.

3. Good quality. Using raw materials imported from Japan and South Korea.

    More than 85% of product automated manufacturing coverage.

4. Excellent R&D team, clients design requests are welcome.

5. Two thousands invention patents and 47 utility model patents.

6. Assembly process in 100,000 grade dust-free workshop.
7. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

8. After-sales service team. Global radiation multiple service outlets.


 Application


Rocker switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

 FAQ


1. Q: Are you manufacture/ factory? Location?

    A: Yes, three palnts located in Shenzhen , Zhejiang, Hubei province.

2. Q: Can I get free sample before placing an order ? MOQ?

    A: Yes, free samples will get ready within 3~5 days. MOQ1,000pcs.

3. Q: What about the delivery time?
    A: Stable delivery. 7-15 working days.

4. Q: What about terms of payment ?

    A: T/T, L/C, Paypal, Cash etc.

5. Q: Can you customize products according to the design drawing?
    A: We have independent R&D center in Shezhen, ODM/OME project is welcome.

6.Q: Do you test all your goods before delivery?

   A: Yes, we have 100% test before delivery.
