Home Switch Rocker switch 3 pin rocker switch wiring

3 pin rocker switch wiring

Electronic Free sample  t85 55 3 pin rocker switch wiring

  • Brand:

    Gangyuan
  • Item NO.:

    RS601C1-101
  • Order(MOQ):

    25pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 Working Days after payment
  • Product Detail

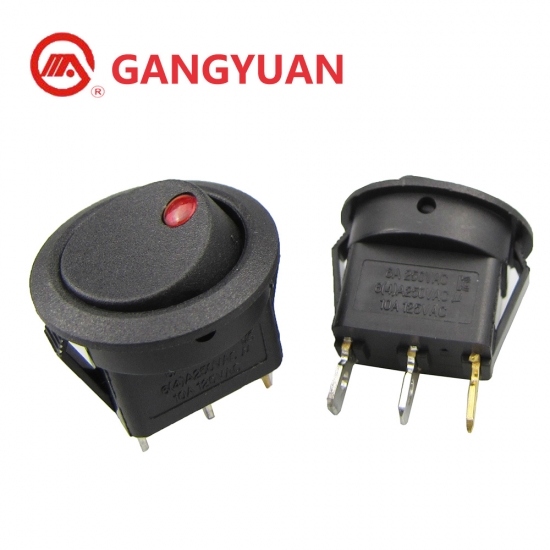

Electronic Free sample  t85 55 3 pin rocker switch wiring


Basic Information









                led rocker switch wiring.JPG

P/A
RS601C1-101N171BB
Diameter
20x19.5mm
Rating
6A AC250V
Life cycles
10,000 cycles
Certificate
CE, CQC, ROHS, VDE etc
Function
ON-OFF, ON-ON, ON-OFF-ON

Dimension

t85 rocker switch.JPG

More Hot selling Items

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
