Home Switch Rocker switch 250V t105/55 rocker switch

250V t105/55 rocker switch

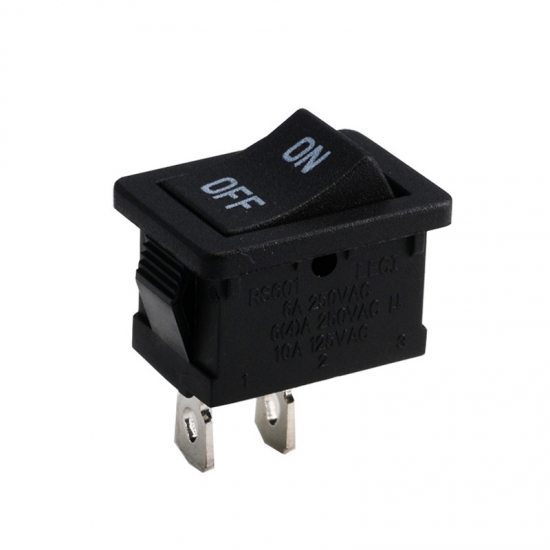

Free Samples 2pin 21*15mm 250V t105/55  small rocker switch

  • Brand:

    Gangyuan
  • Item NO.:

    RS601A
  • Order(MOQ):

    10pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    3 working days for payment
  • Product Detail

Free Samples 2pin 21*15mm 250V t105/55  small rocker switch

Basic Information

Model Name:

 t105/55 Rocker Switch

Model No.:

RS601A-1010021BB

Dimension:

15x21mm²

Rating:

4~10A, 250V

Contact Resistance:

≤50mΩ

Insulation Resistance:

≥100MΩ

Dielectric Strength:

1500VAC,1Minute

Operating Temperature:

-55℃~+1005℃

Electrical Life:

>10000 Cycles

Certifications:

CE,CQC,ROHS,VDE


Dimension

 10a micro rocker switch.jpg

kcd2 rocker switch 10a 250v.jpgHTB1lKU8dLpXar.jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact s

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
