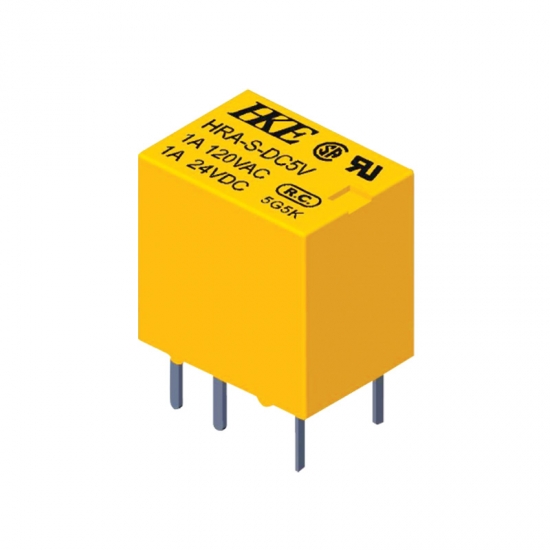

24volt mini 4 pin relay

General Purpose Sealed Protect 24volt mini 4 pin relay 24v

Brand:
Gangyuan
Item NO.:
HRA
Order(MOQ):
1000pcs
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
yellow
Shipping Port:
Ningbo/Shenzhen
Lead Time：
7 Working Days after payment

Product Detail

General Purpose Sealed Protect 24volt mini 4 pin relay 24v

Product Description:

Relay Specification:

Contact Form		1 Form C
Contact Material		AuAg overlay
Contact Rating		1A 120VAC/24VDC
Contact Resistance		Max. 50mΩ (6VDC 0.1A)
Load	Max. Switching Voltage	120VAC/30VDC
	Max. Switching Current	2A
	Max. Switching Power	120VA, 30W
	Min. Switching Load	5VDC, 10mA
Life	Electrical	100,000 operations
	Mechanical	10,000,000 operations

Insulation Resistance		Min. 100MΩ 500VDC
Dielectric Strength	Between open contacts		500VAC, 1min
	Between coil and contacts		500VAC, 1min
Operate Time		Max. 6ms
Release Time		Max. 4ms
Operating Temperature		-25℃ to +70℃
Humidity		35~95 RH, +40℃
Shock Resistance	Endurance	1,000m/s2
	Misoperation	100m/s2
Vibration Resistance	Endurance	10~55Hz, 1.5mm double amplitude
	Misoperation	10~55Hz, 1.5mm double amplitude
Weight		Approximately 1.7g

Dimension:
