Home Relay & Sensor 24v dc power relay

24v dc power relay

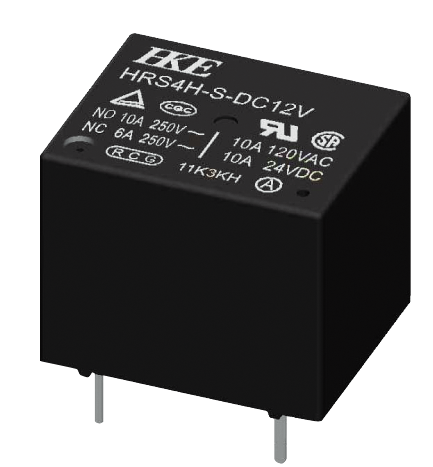

4 pin 125/250v ac 24v dc power relay 12v 10a

  • Brand:

    Gangyuan
  • Item NO.:

    HRS4
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 Working Days after payment
  • Product Detail

4 pin 125/250v ac 24v dc power relay 12v 10a



Product Description:

Miniature relay

Dimensions: 19.0×15.5×15.8(mm)

Contact: 1 Form A, 1 Form B, 1 Form C

TV-5 rating

UL Class F insulation



Contact Form

1 Form A, 1 Form B, 1 Form C

Contact Material

Ag Alloy

Contact Rating

A: 15A 125VAC, 10A 250VAC

C: NO: 10A 250VAC/24VDC NC: 6A 250VAC/24VDC

TV-5 125VAC

Contact Resistance

Max. 100mΩ (6VDC 1A)





Load

Max. Switching Voltage

250VAC/28VDC



Max. Switching Current

15A



Max. Switching Power

2,500VA, 280W



Min. Switching Load

5VDC, 100mA



Life

Electrical

100,000 operations



Mechanical

10,000,000 operations



Insulation Resistance

Min. 1000MΩ 500VDC

Dielectric Strength

Between open contacts

750VAC, 1 min

Between coil and contacts

1,500VAC, 1min

Operate Time

Max. 10ms

Release Time

Max. 5ms

Operating Temperature

-40℃ to +85

Humidity

35~95 RH, +40℃

Shock Resistance

Endurance

1,000m/s2

Misoperation

100m/s2

Vibration Resistance

Endurance

10~55Hz, 1.5mm double amplitude

Misoperation

10~55Hz, 1.5mm double amplitude

Weight

Approximately 10.0g

Dimension:
