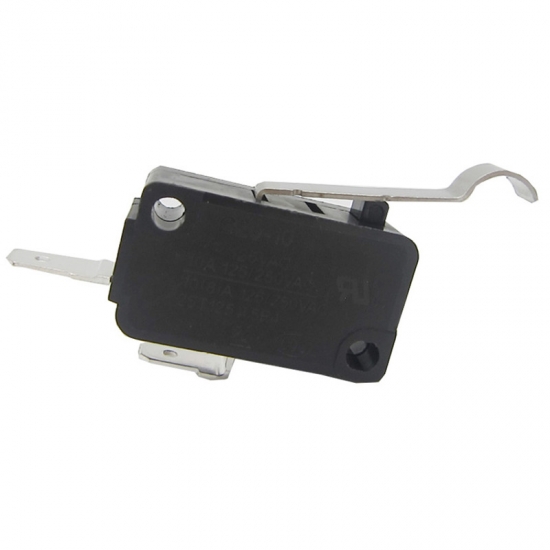

16a 250v micro switch

t100 micro switch t105 1e4 16a 250v  micro switch lxw 16a

  • Brand:

    Gangyuan
  • Item No.:

    G20-16GN03-70
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    10pcs
  • Lead Time:

    3 working days for payment
Product Details

t100 micro switch t105 1e4 16a 250v  micro switch lxw 16a

Basic Information

Item No.
G20-16EN03-70
Dimension
29mmx10.1mm
Contact resistance
≤100mΩ
Dielectric Withstanding Voltage
 AC 1500V 1Minute
Operating temperature
-25℃+125℃
Operating force
70±50gf
Life expectancy
50,000Cycles
Rating
16A 125V/250VAC


Dimension

 micro switch enec vrsn 250vac 16a t125.jpg

micro switch para calentadores de agua.jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact s

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
