Home Relay & Sensor 10A 20A automotive relay

10A 20A automotive relay

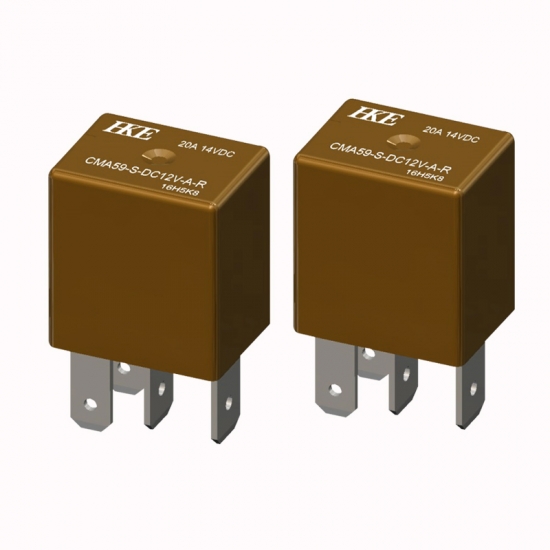

HKE CMA59 4 Pin New and original Silent 14VDC 10A 20A  automotive relay

  • Brand:

    HKE
  • Item NO.:

    CMA59
  • Order(MOQ):

    50 pcs
  • Payment:

    T/T
  • Product Origin:

    zhejiang/shenzhen
  • Color:

    Orange
  • Shipping Port:

    ningbo or shenzhen
  • Lead Time:

    3 Working Days after payment
  • Product Detail

HKE CMA59 4 Pin New and original Silent 14VDC 10A 20A  automotive relay

Basic Information

Product name

automotive relay

Dimentions

20.4x15.1x22.0mm

Contact Material

Ag Alloy

Contact Rating

Motor:20A/10A 14VDC

Contact Resistance

Max. 100mΩ (6VDC 1A)

Insulation Resistance

Min.100MΩ 500VDC

Operating Temperature

-40℃ to +125℃

Operation life

1,000,000ops(300ops/min)

Dielectric Strength

550VAC,50/60Hz,1 min

Nominal Coil Power

0.64W


Dimension

relay 12v.jpg

relay 4 pin.jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
