Home Switch Rocker switch 10a 125vac rocker switch

10a 125vac rocker switch

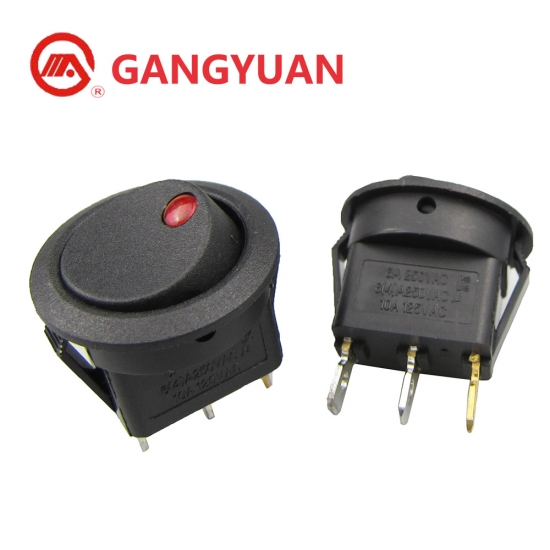

3 way 6a 250vac 10a 125vac rocker switch with light indicator

  • Brand:

    Gangyuan
  • Item NO.:

    RS601C1-101
  • Order(MOQ):

    1
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black and red
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    3 working days for payment
  • Product Detail

3 way 6a 250vac 10a 125vac rocker switch with light indicator

Basic Information

Model Name:

Rocker switch

Model No.:

RS601C1-101

Life:

10 000 Cycles

Rating:

6A/250VAC 10A/125VAC

Contact Resistance:

20mΩ max

Insulation Resistance:

500VDC 100MΩ min

Ambient Temperature:

- 20℃ +80℃

Relative Hnmidity:

80% 40℃

Action Force:

5-8N

Certifications:

CE,CQC,ROHS,VDE


Dimension

 rocker switch 3 pin wiring.jpg

3 pin led rocker switch wiring diagram.jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact s

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
