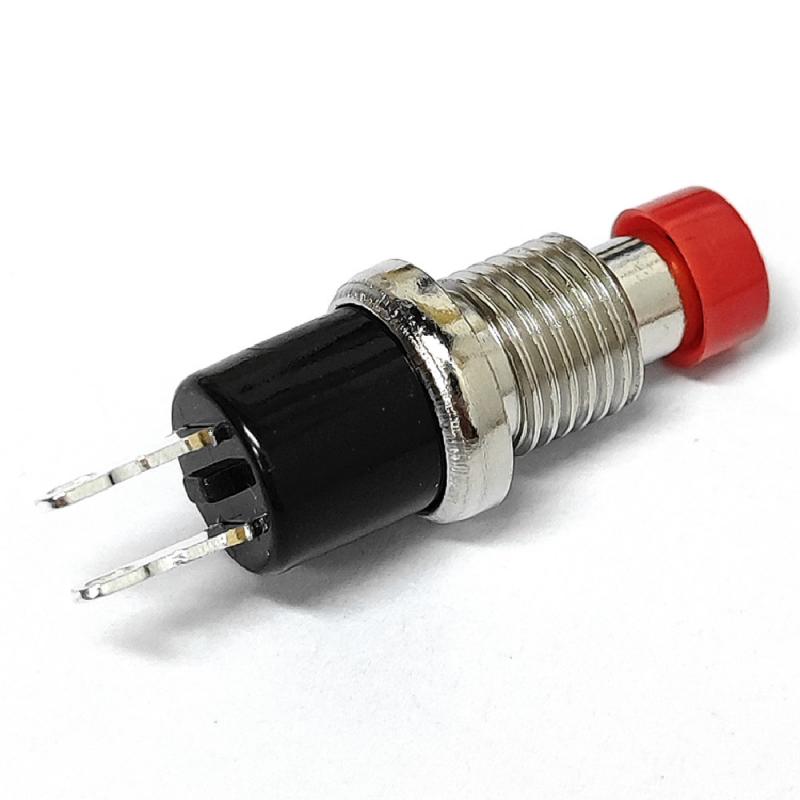

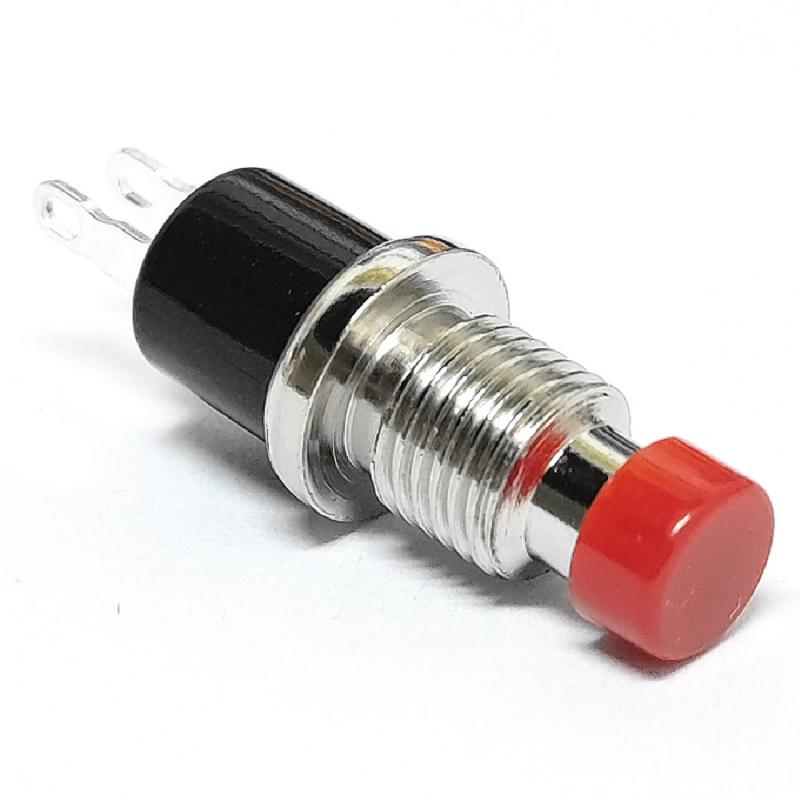

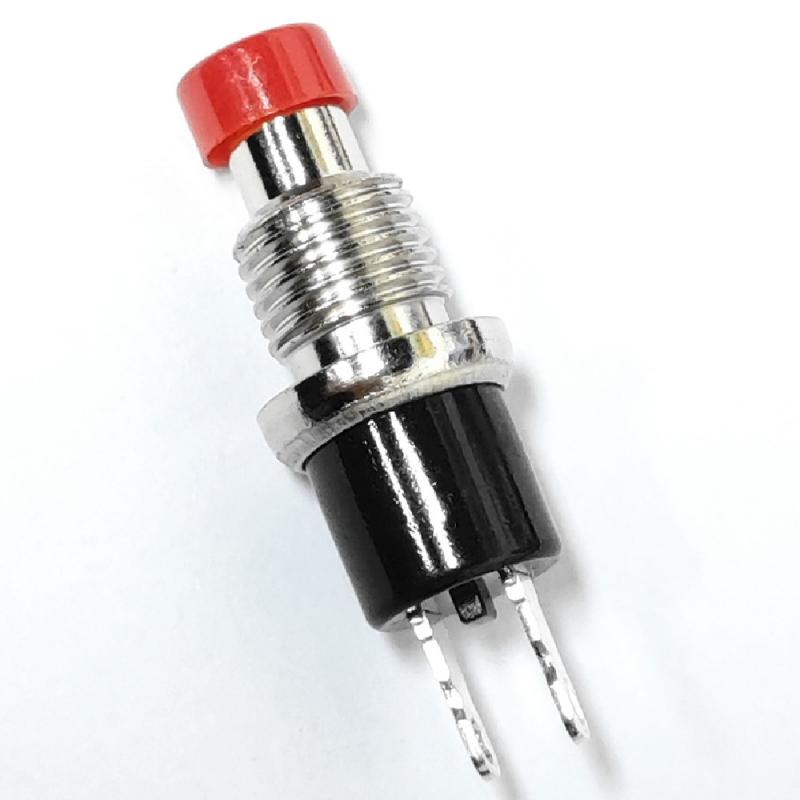

red non locking push button switch

7mm mini non-locking SPST momentary micro switch 2 pin metal push button

Super small connection points button switch

 Feature

Action type: Momentary, terminal: 2pin

Pole: SPST-NO

Rating:1A 48V~

Insulation resistiance: ≥ 100MΩ

Contact resistance: ≤ 100mΩ

Dielectric strength: ≥500V/5S

Endurance:≥ 10000 cycles

Ambient temperature: T85

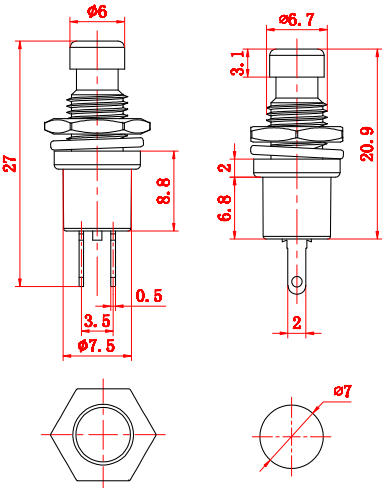

 Drawing

 Application

Spring-Return push button switches are widely used in industrial control circuits for controlling electromagnetic starters,

contactors, relays and other circuits, various manual DIY electronic products

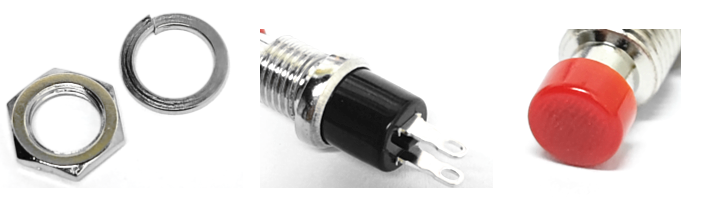

 Push button switch parts

                  Accessories                                                        Body                                                 Hat

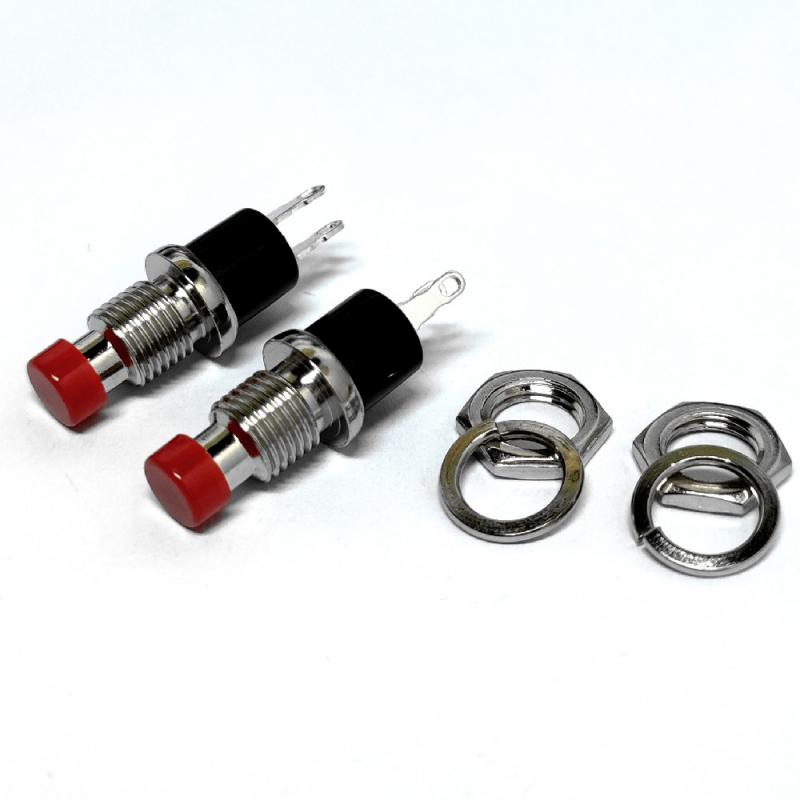

Each switch is equipped a nut and a washer       Using metal pin, metal body                         Color: Red

 Switch Function Choose

           Normal Closed                                              Normally open

     Action Type: Momentary                              Action Type: Momentary

Contact Type: NC ( Normal Closed )             Contact Type: NO ( Normally open)

If you press it, it will be powered off,             Push and Hold- ON, Release - OFF

it you release it, it will be powered.
