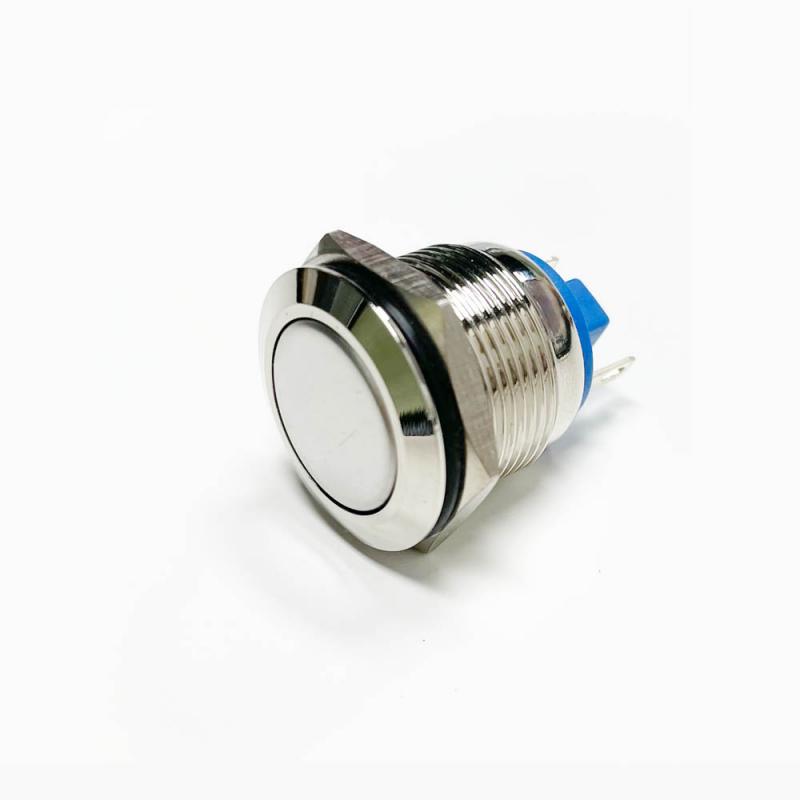

Momentary metal factory push button self compound switch

Momentary metal factory push button switch

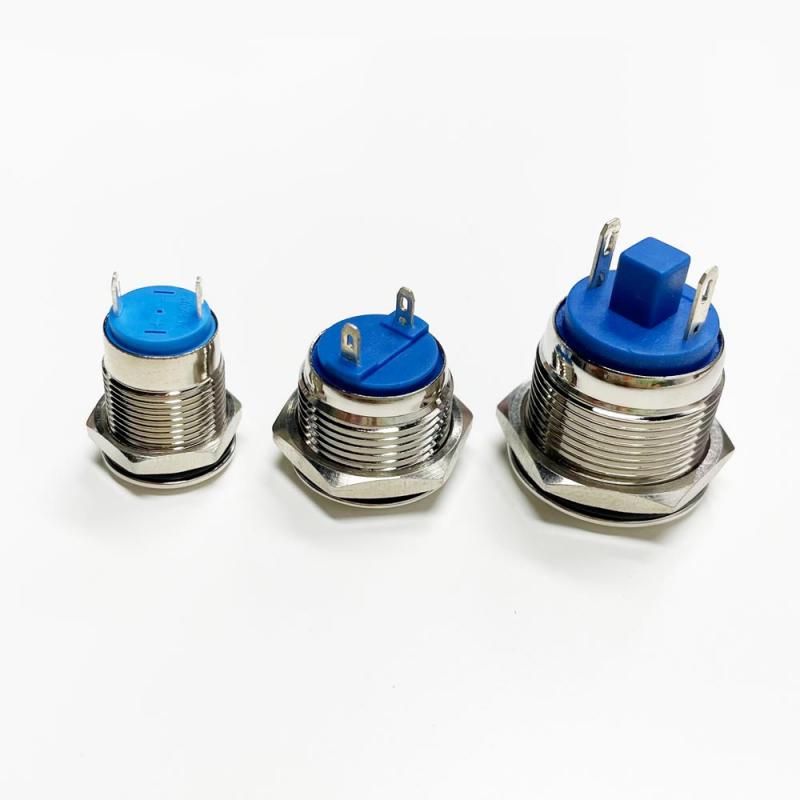

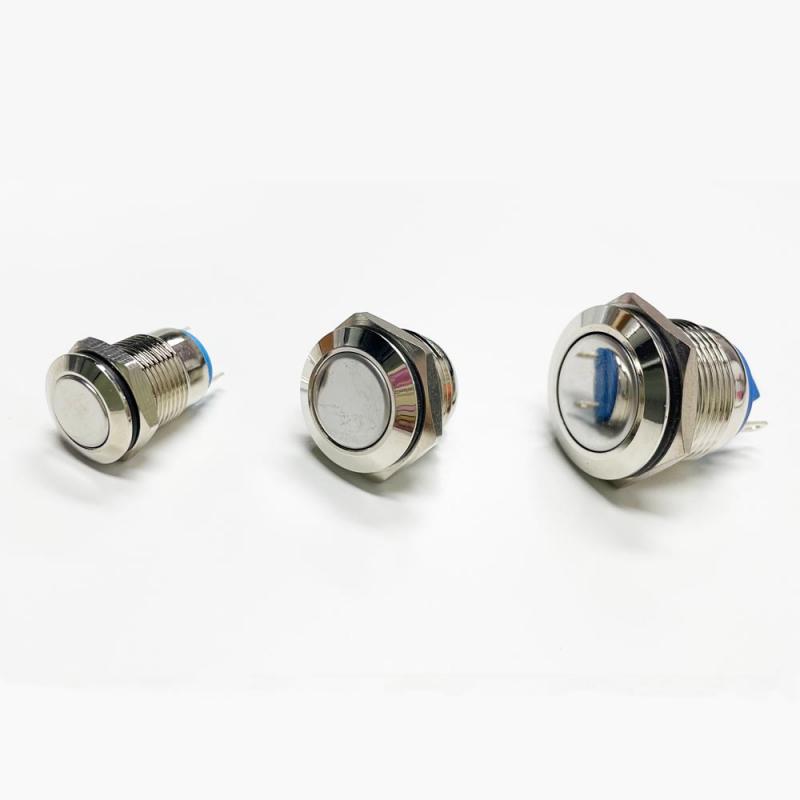

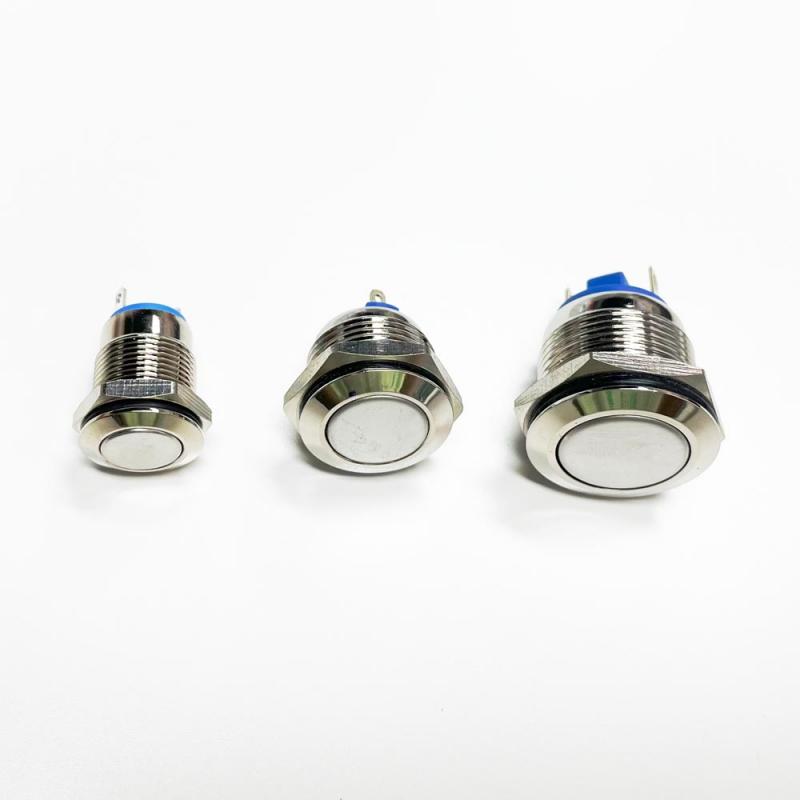

Optional size: 12mm 16mm 19mm

Materials : Bronze, stainless steel

Rating:  2A DC36V

Type: 1 NO

  • Brand:

    Gangyuan
  • Item NO.:

    HBDGQ12F-10
  • Order(MOQ):

    1
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    original
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-15 working days after payment
  • Product Detail

Waterproof IP67 metal push button switch factory/ manufacture


 Basic Information


Mounting Hole Size     12mm
Front Shape Flat and Round
Operating Stroke 1.6mm
Switch Rating DC36V  2A

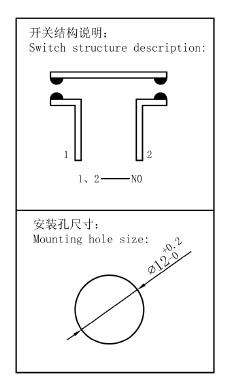

Contact Configuration 1 NO
Operating Type self compound
Electrical Life ≥50,000 cycles
Operating Temperature -25℃~65℃
Operating Pressure 3~5N
Shell Material                             Nickel-plated Brass/ Stailess Steel

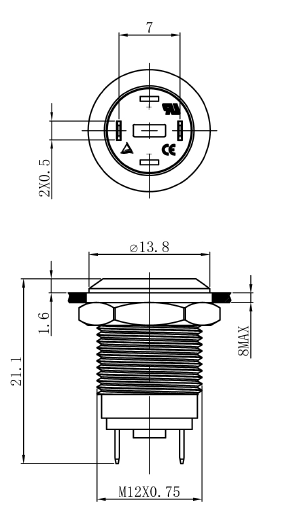

Dimension




 Our advantage


1. Our factory has more than 20 years of experience in the field of switch manufacturing.

2. Variety of  switch type.: More than 2000 models.

3. Good quality.

     a) imported brass fromJP or KOREA

     b)  More than 85% of product automation .

4. Independent R&D team, OEM welcome.

5. Self technology patents and  switch model patents.

6. Assembly process in 100,000 grade dust-free workshop.
7. Certificates :TS16949,ISO9001,ISO14001,OHSA18001, ROHS, REACH, UL etc.

8. One-top service from sale to after-sales in global outlets.


 Application


Our Metal Push Button Switch are beautiful and novel, compact in structure, fast-moving contacts, long life, high reliability, convenient installation, and are favored by users. They are suitable for application fields such as transmission and distribution network, mechanical equipment, urban transportation, new energy, etc.


  FAQ


1. Q: Are you manufacture/ factory? Location?

    A: Yes, three palnts located in Shenzhen , Zhejiang, Hubei province.

2. Q: Can I get free sample before placing an order ? MOQ?

    A: Yes, free samples will get ready within 3~5 days. MOQ1,000pcs.

3. Q: What about the delivery time?
    A: Stable delivery. 7-15 working days.

4. Q: What about terms of payment ?

    A: T/T, L/C, Paypal, Cash etc.

5. Q: Can you customize products according to the design drawing?
    A: We have independent R&D center in Shezhen, ODM/OME project is welcome.

6.Q: Do you test all your goods before delivery?

   A: Yes, we have 100% test before delivery.
