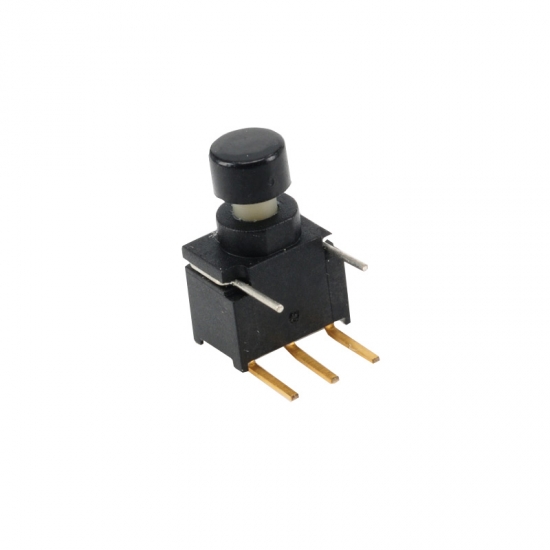

Mini Right Angle Toggle Switch Push Button

This toggle switch come in SP On-Mom function, a variety of cap colors for options, right angle, PC thru-hole style.

  • Brand:

    Gangyuan
  • Item NO.:

    8US8WR2C2M6RES
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang
  • Color:

    Black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    20 working days after payment
  • Product Detail

Product Item: Mini Right Angle Toggle Switch Push Button


Feature

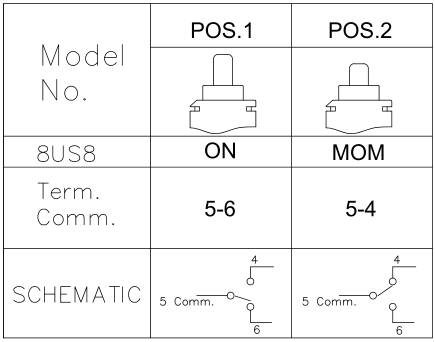

Sealed Ultraminiature pushbutton switch, PC thru-hole, right angle type, vertical right angle type terminals for choices, caps color such as white, black, red for oprtions. Switch functions offer SPDT/DPDT.



Specification

Mechanical life: 40,000 make-break cycles

Contact rating: 0.4VA Max@20V AC or DC Max

Contact resistance: Below 100mΩ, typ. initial@2-4V DC, 100mA

Insulation resistance: 500MΩ min.

Dielectric strength: 500V RMS@sea level

Operating temperature: -30℃ to 85℃

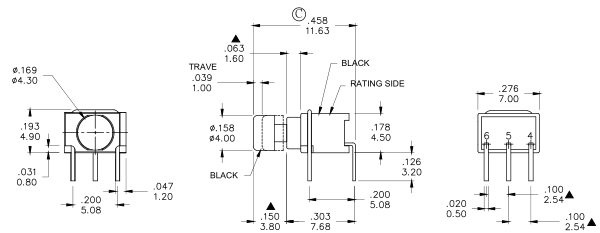

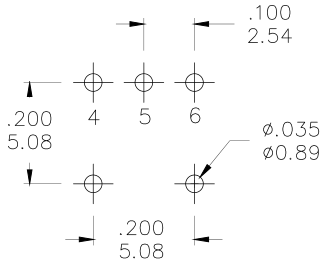

Dimension
