Wenzhou Gangyuan Electronics Co.,Ltd.
This Micro Switch is free from overtravel restrictions, permit easy setting
Brand:
GangyuanItem NO.:
G20-16CM03-150Order(MOQ):
1000pcsPayment:
100% T/T before productionProduct Origin:
ZhejiangColor:
blackShipping Port:
Ningbo/ShenzhenLead Time：
7 working days

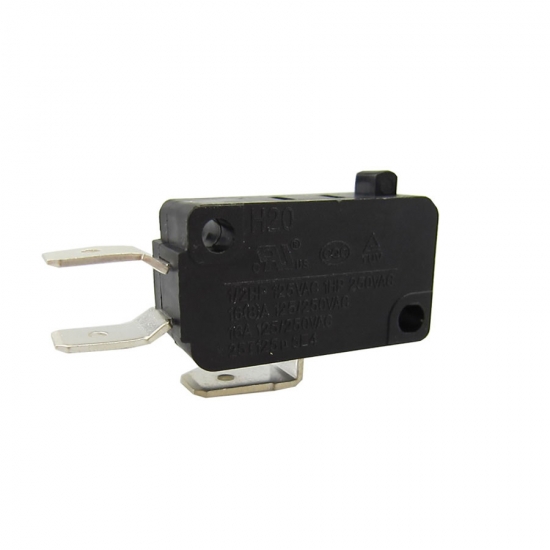

Product item:Ultra Subminiature Limit Switch
Snap action contacts have different trip and reset points. The distance between the trip and reset point is called the travel to reset, hysteresis, or differential. Finite travel to reset helps to avoid multiple changes of state if the object actuating the switch is subject to vibration
General characteristic：
|
Rating |
16A，125/250V AC |
|
Operation Temperature |
-25℃±125℃ |
|
Electrical life |
50,000 cycles |
|
Mechanical life |
100,000 cycles |
|
Operation force |
150±50gf（MAX） |
|
Contact resistance |
≤200mΩ MAX |
Dimension:
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
