IP66 micro tact switch

There are 5-17mm product height and 160gf/260gf operating force for customer choice.

  • Brand:

    Gangyuan
  • Item NO.:

    KAN1216A
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 Working Days For Payment
  • Product Detail

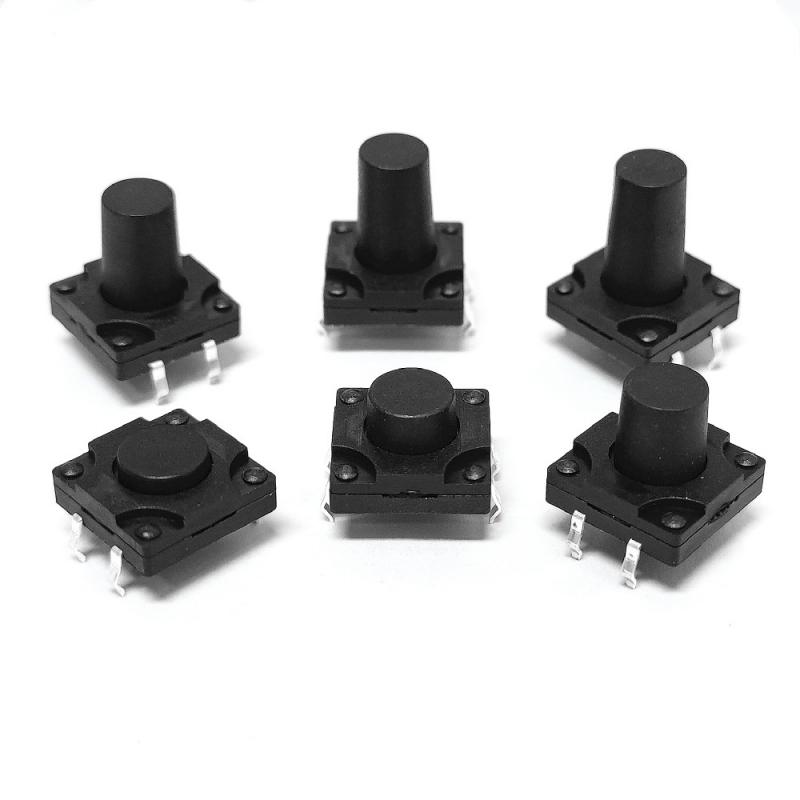

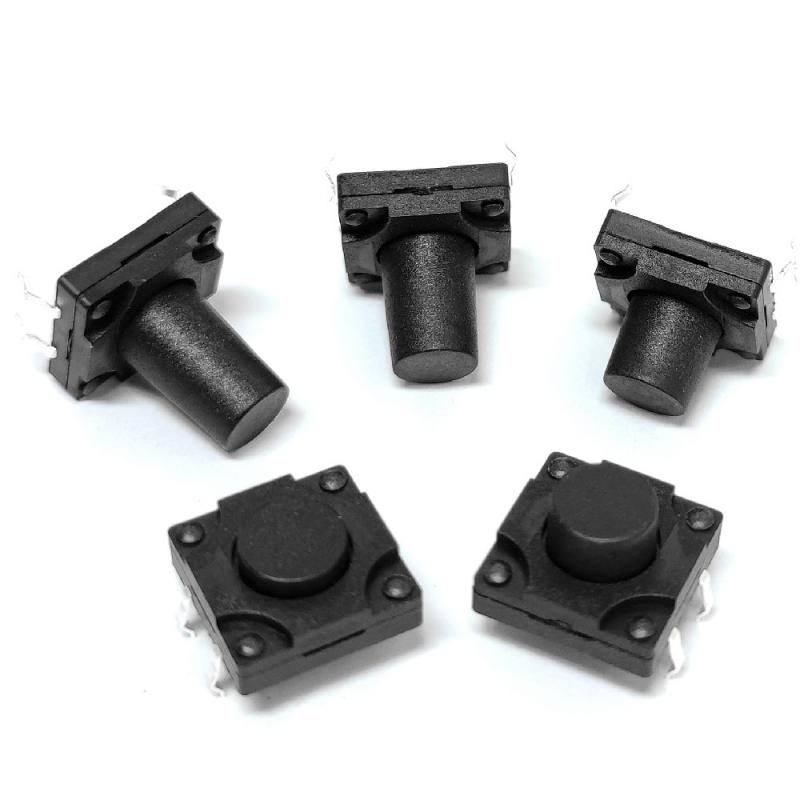

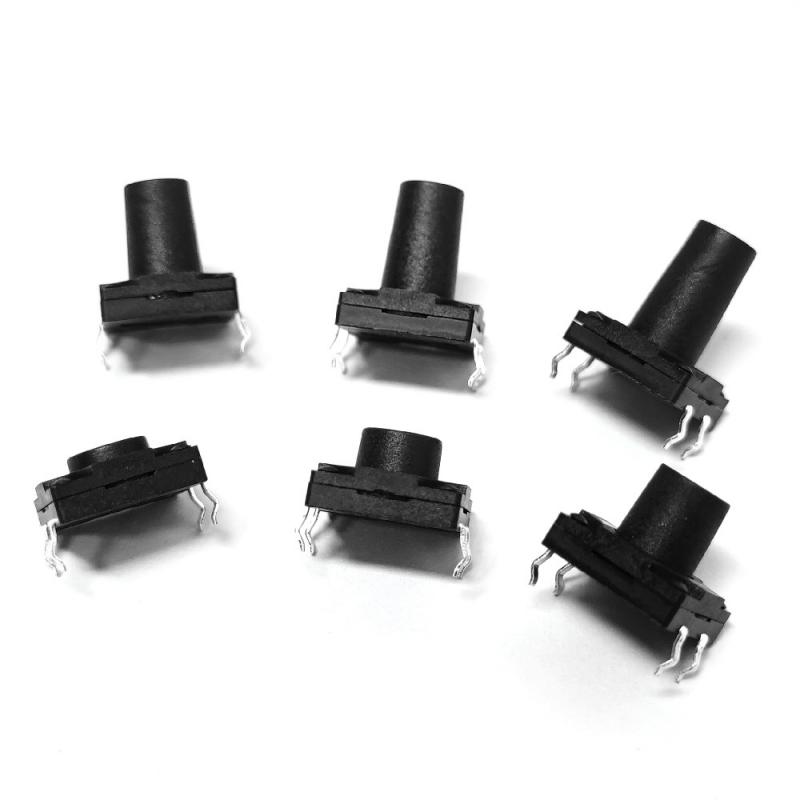

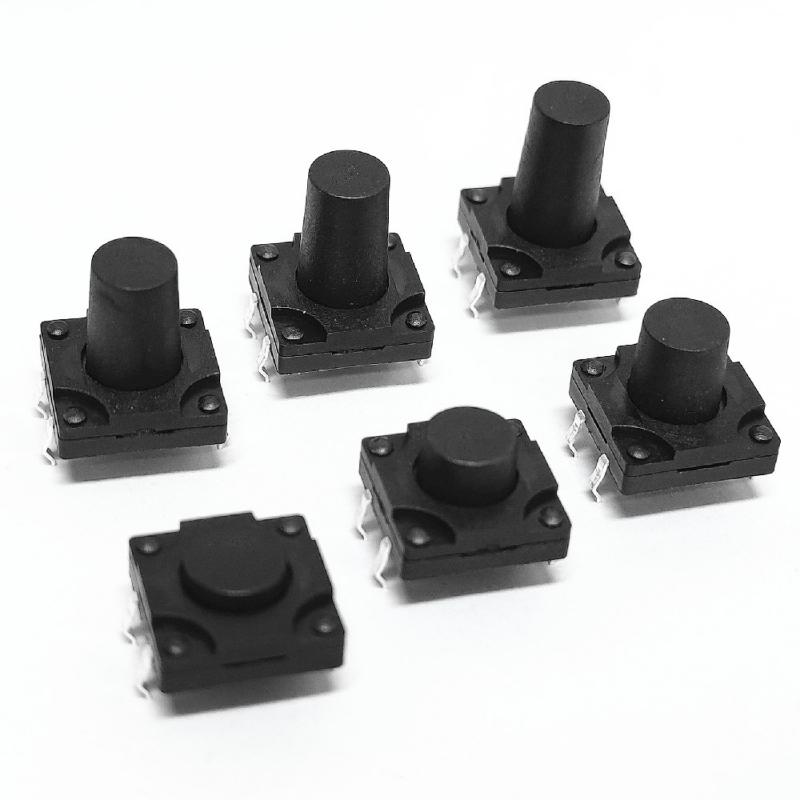

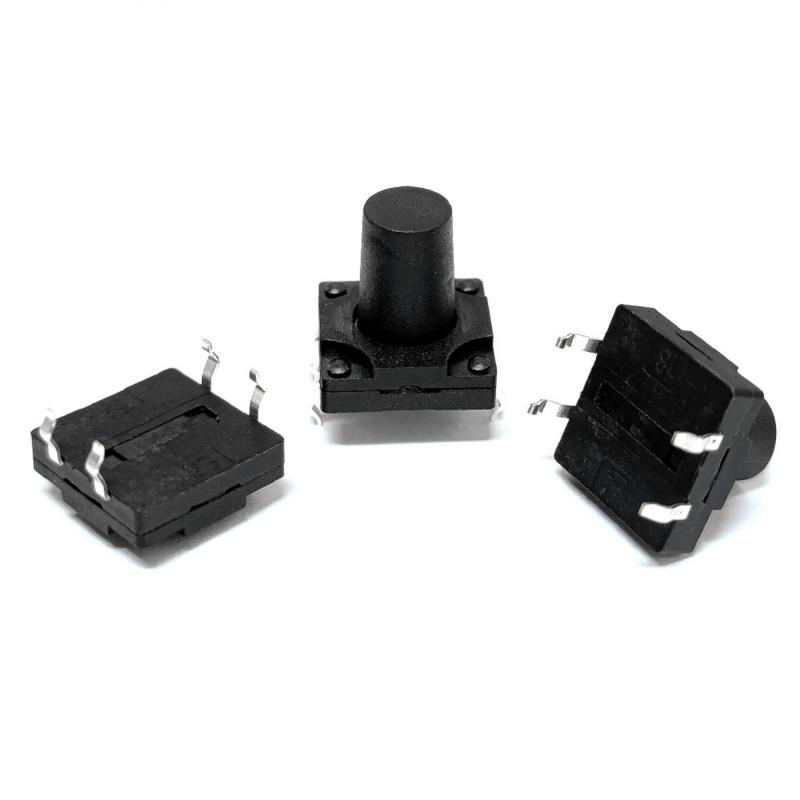

12V 50mA through-hole mini tact switch

china waterproof tact switch


Parameter


tact switch 12x12mm

Contact Resistance: ≤100mΩ

Insulation Resistance: ≥100MΩ
Operating Force:  B:160±70 gf C:260±100gf
Full Travel: 0.45±0.1mm
Operation life: 70,000cycles

Return Force: 20gf Min

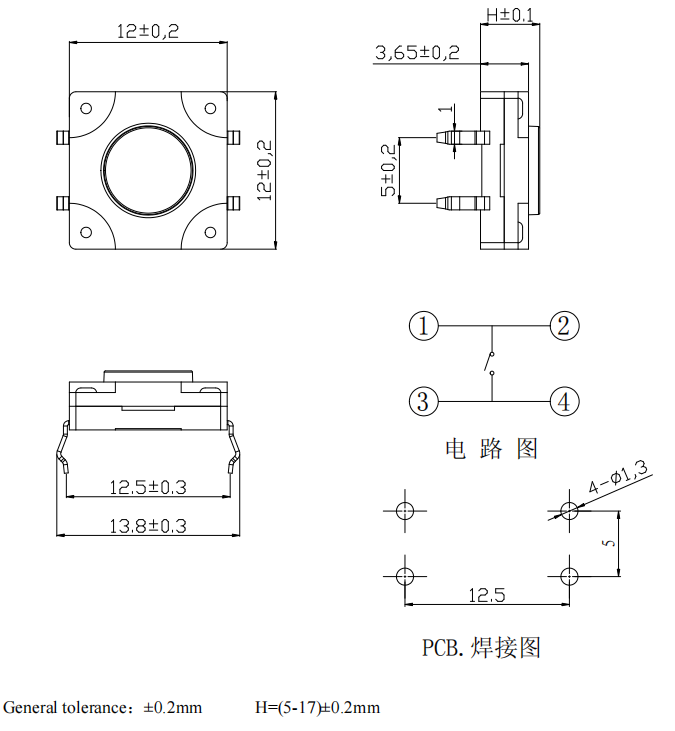

Drawing



What is a tact switch


A "tactile switch" is a widely used switch that typically completes a circuit when the user applies pressure to the device, and then provides the user with a perceptible "click" or tactile shock in response, instructing the flow of electrical current. When the switch is released, the current is turned off. Simply put, a tactile switch is a momentary action device whose operation is perceived by touch. This tangible feedback provides the user with some assurance that the switch has been operated and the signal has flowed. Tactile switches can also turn off current when the switch is pressed and turn it back on when released.


Features and benefits of tact switch


  1. First, tactile switches provide an important and useful function that enhances the user's perception of the product.
  2. Second, the tactile switch provides tactile and audible feedback to the operator, confirming that the switch is engaged and power is flowing to the circuit.
  3. Third, tactile switches typically operate at lower power and current ratings. This makes them cheaper to produce and better matched to low voltage equipment and systems. Lower voltage also means less arcing at the contact point.
  4. Finally, with few moving parts, tact switches typically last longer than other mechanical switches. This allows them to be used directly on the board without having to worry about disassembly for repairs. This also means that they are less expensive to use in products than other switch types.
