Home Switch Tactile switch 62 Series tact switch double action dual tact switch

double action dual tact switch

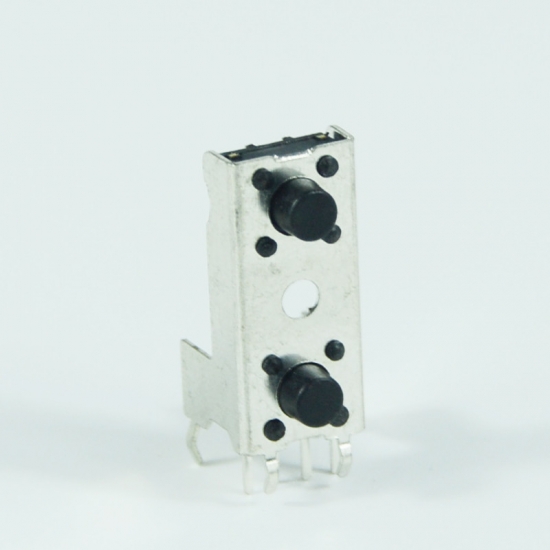

6.2mm rectangular side double action dual tact switch with bracket

  • Brand:

    Gangyuan
  • Item NO.:

    KAN6233-0601B
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    silver
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 Working Days after payment
  • Product Detail


6.2mm rectangular side double action dual tact switch with bracket


Basic Information

Model Name:

DUAL tact switch

Model No.:

KAN6233-0601B

Dimension:

6.2x6.2x6mm

Operating force:

160gf±50gf

Operation Life  80000 cycles

DC rating:

12V DC, 50mA (effective value)

Full travel :

0.25±0.1mm


Dimension



Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
