12x12mm tact switch

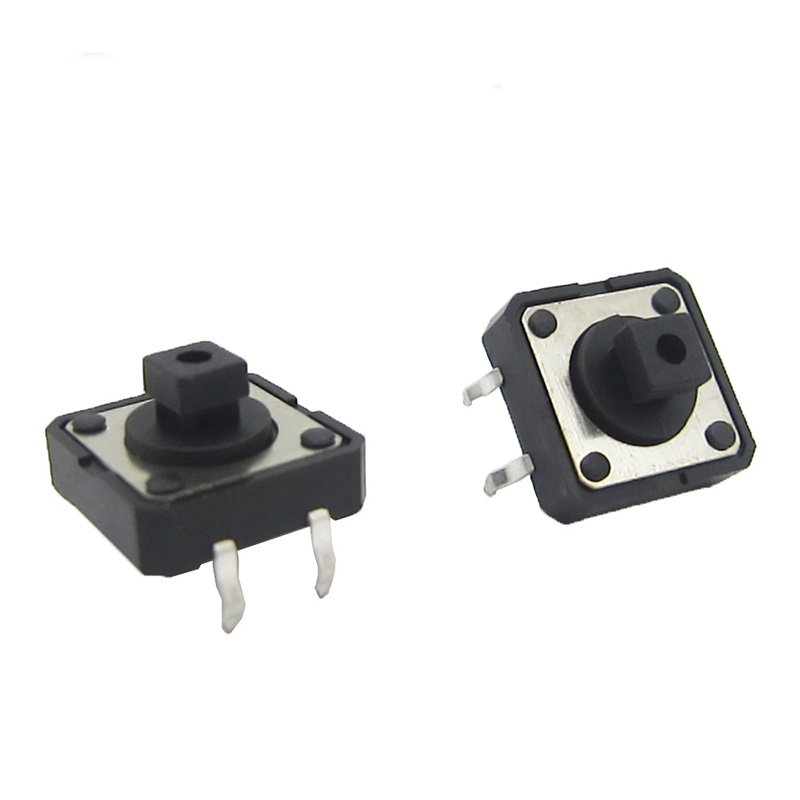

nc square head and base wave soldering 12x12mm tact switch

  • Brand:

    Gangyuan
  • Item NO.:

    KAN1210
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 Working Days after payment
  • Product Detail


nc square head and base wave soldering 12x12mm tact switch


Basic Information

Product name DIP Tactile Switch
Operation force 160/260gf
Full travel 0.25±0.1mm
Return force 0.4/0.6N MIN
Low temperature resistance -30±2℃,96h
Heat resistance 80±2℃,96h
Sulfuration resistance 72h,40±2℃
Salt Mist 8h±1h,35℃±2℃
Operation life

50,000/80,000 cycles

Dimension




Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
