Home Switch Tactile switch 12 Series tact switch 12x12 waterproof Tact Switch

12x12 waterproof Tact Switch

New Design waterproof Tact Switch - The cover plate and the base adopt a snap-fit design, which improves the reliability of the assembly and use of the switch, and solves the problems of riveting points

  • Brand:

    Gangyuan
  • Item NO.:

    KAN1210F-0739B100-B2
  • Order(MOQ):

    100
  • Payment:

    100% before Production
  • Product Origin:

    China, Zhejiang
  • Color:

    Metal
  • Shipping Port:

    Ningbo
  • Lead Time:

    7-15 working days
  • Outline (mm)

    12.00mm x 12.00mm
  • Mounting Type

    Through Hole
  • lllumination

    Non-llluminated
  • IP Rating

    IP67
  • Product Detail

THT mount type 12x12 IP67 tact switch for Electric welding machine


 Specification

Type:Square brown waterpoof Tact Switch

Ratings: DC 12V 50mA(Max) DC 1V 10μA (Min)

Contact Resistance: ≤100mΩ

Insulation Resistance: ≥100MΩ

Operating Force: 160±50gf

Life: 1000,000 cycles

Product height: 7.3mm

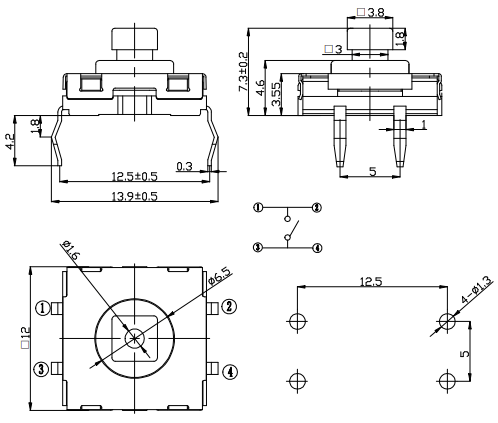

 Dimention


 New design

AppearanceThe cover and the base adopt a snap-fit design - improving the reliability of the assembly and use of the switch.

Structure: Waterproof and dustproof - IP67, Solve the problem that when the customer's product is used in a harsh environment, it is easy

for foreign objects such as water or dust to enter the inside of the switch, causing its conduction failure and making it unusable.

Performance: High life - 1 million times, to meet the needs of customers with long product life cycle

Application: Industrial equipment - Electric welding machine ( function adjustment switch)

 SMD Type choose

12*12 IP67 smd tact switch
