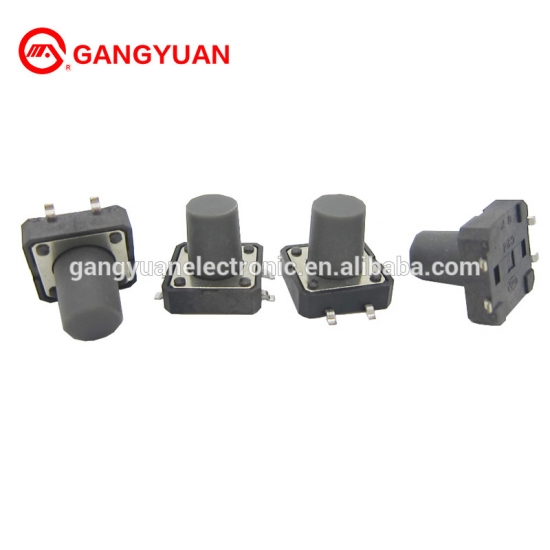

12x12 SMD PCB tact switch

series dip push button switch 12x12 SMD PCB tact switch

  • Brand:

    Gangyuan
  • Item No.:

    KAN1241
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    50 pcs
  • Lead Time:

    3 Working Days after payment
Product Details

series dip push button switch 12x12 SMD PCB tact switch

Basic Information

Product name 12x12mm smd Tact Switch
Operation force 100gf/160gf/260gf
Full travel 0.35±0.1mm
Stem Strength 20N.min.
Low temperature resistance -30±2℃,96h
Heat resistance 80±2℃,96h
Contact Resistance ≤50mΩ
Operation life

100,000 cycles/ 80,000 cycles/

60,000 cycles


Dimension


smd switch tactile 12x12.jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
