self-locking push button switch

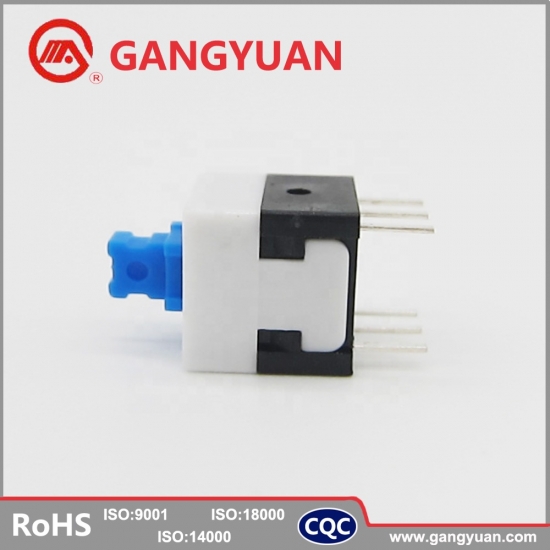

6 pin silver coated terminal latching switch self-locking push button switch

  • Brand:

    Gangyuan
  • Item NO.:

    PB22E09
  • Order(MOQ):

    50 pcs
  • Payment:

    T/T
  • Product Origin:

    zhejiang/shenzhen
  • Color:

    blue and white
  • Shipping Port:

    ningbo or shenzhen
  • Lead Time:

    3 Working Days after payment
  • Product Detail


6 pin silver coated terminal latching switch self-locking push button switch


Basic Information

Product name Locking push button switch
Model Number

PB22E09

Rating

30V DC, 0.1A

Solder temperature 245±5℃
Contact Resistance ≤100MΩ
Insulation Resistan ≥100MΩ
Heat resistance 80±2℃,72h
Mositure resistance 72h,40±2℃
Operation life 10,000 cycles

Dimension

6 pin push button switch.jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
