Home Switch Non locking Switch Self-locking push button switch

Self-locking push button switch

The most ratings of Self lock push button switch: 30V DC, 0.1A (effective value)

  • Brand:

    Gangyuan
  • Item NO.:

    PB22E06371-0106
  • Order(MOQ):

    100PCS
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 working days for payment
  • Product Detail

30vdc 5.8mm 6pin latching push button switch

The self lock push button switch has 2 functions to choose from: self-locking and non-locking


 Lock switch Information



Most ratings: 30V DC, 0.1A (effective value)


Contact Resistance: 100mΩ.max


Insulation Resistance: 100MΩ.min


Operating Force: 200±80gf

Travel: 2.2 ± 0.2mm

Size: 5.8x5.8mm

Function: 6 pin push button switch with locking

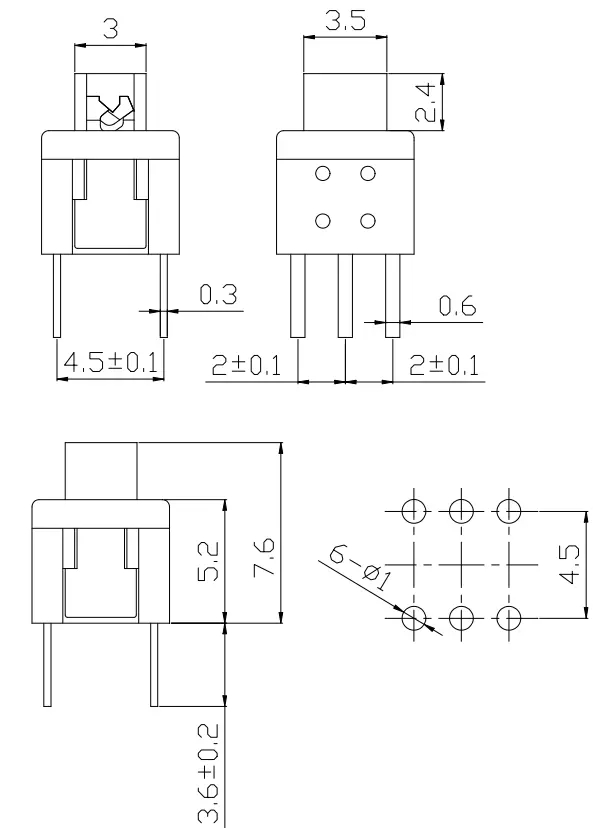

 Dimension

 What is a self locking switch ?


The self-locking switch is usually a normal switch with a mechanical lock built in. When pressed down and released, it doesn't bounce back automatically. Only after a second press will it unlock and fully release.


 Our advantage


1. The factory has more than 20 years of experience in the field of switch manufacturing.

2. Variety of categories. More than 2000 models.

3. Good quality. Using raw materials imported from Japan and South Korea.

    More than 85% of product automated manufacturing coverage.

4. Excellent R&D team, clients design requests are welcome.

5. Two thousands invention patents and 47 utility model patents.

6. Assembly process in 100,000 grade dust-free workshop.
7. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

8. After-sales service team. Global radiation multiple service outlets.


 Application


The push button switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

  FAQ


1. Q: Are you manufacture/ factory? Location?

    A: Yes, three palnts located in Shenzhen , Zhejiang, Hubei province.

2. Q: Can I get free sample before placing an order ? MOQ?

    A: Yes, free samples will get ready within 3~5 days. About latching push button switch, MOQ is 1,000pcs.

3. Q: What about the delivery time?
    A: Stable delivery. 7-15 working days.

4. Q: What about terms of payment ?

    A: T/T, L/C, Paypal, Cash etc.

5. Q: Can you customize products according to the design drawing?
    A: We have independent R&D center in Shezhen, ODM/OME project is welcome.

6.Q: Do you test all your goods before delivery?

   A: Yes, we have 100% test before delivery.
