About the micro switch

As its name, the micro switch uses a very small force switch. It is a kind of switch in which external mechanical force acts on the movable reed through the transmission element, so that the fixed contact and the movable contact at the end are quickly connected or disconnected.

Working principle

The external mechanical force acts on the reed through the transmission element (press pin, button, lever, roller, etc.). When the action reed moves to the critical point, it will immediately produce an action, causing the action contact to quickly open or close at the end of the action reed and the fixed contact.

When the force on the transmission element is eliminated, the acting reed will produce a reverse force. When the reverse stroke of the transmission element reaches the critical point of the action of the reed, the reverse action is completed immediately.

The contact distance of the micro switch is small, the action stroke is short, the pressing force is small, and the on-off is rapid.

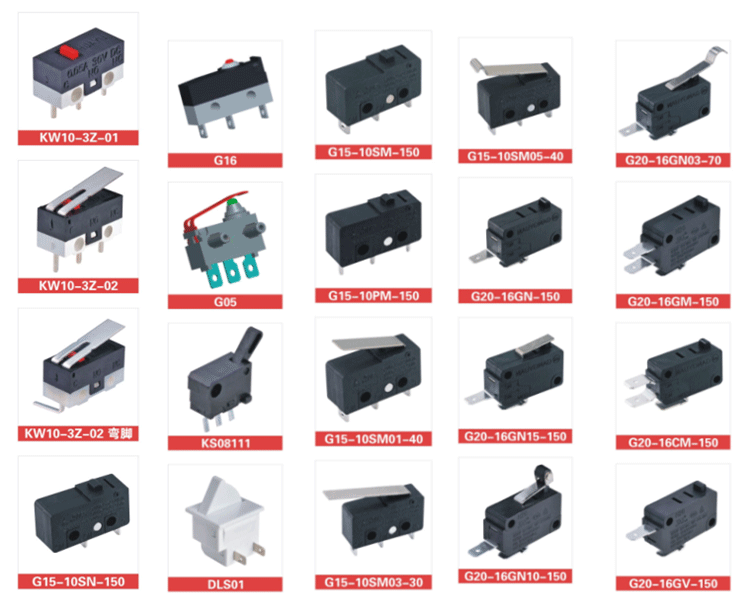

Our micro switch

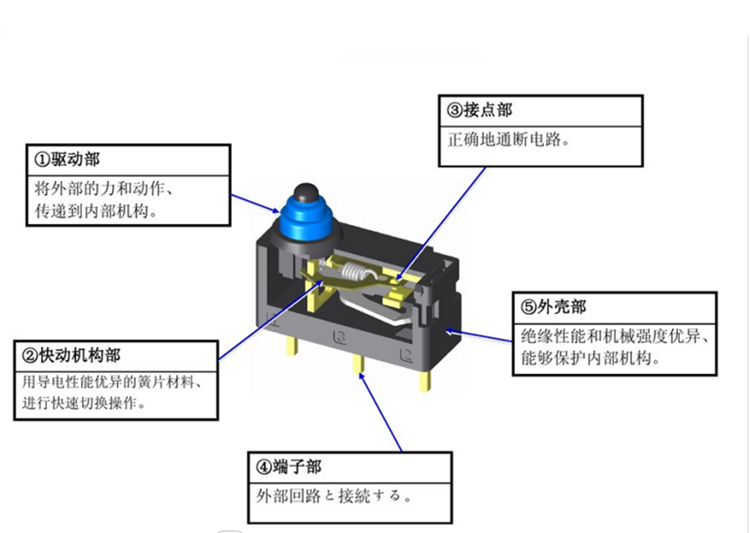

1.Drive part: transfer external force and action to the internal structure

2. Quick action mechanism: use the reed material with excellent conductivity for fast switching

3. Contact: connect and disconnect the circuit correctly

4. Terminal part: connecting switch and external circuit

5. Shell part: protect the internal mechanism
