8×8 compact type Ip67 Waterproof tact switches

8×8x13mm compact type Ip67 Waterproof tact switches, 160gf/260gf,10,0000times for optional, use for Washing machine, kitchen electric, smart toilet cover, household appliances and other operational switches that require waterproof structure.

  • Item No.:

    KAN0851B-1301C
  • Payment:

    T/T before shipment
  • Product Origin:

    China
  • Color:

    black or grey
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000
  • Lead Time:

    3 Working Days after payment
Product Details

Product Item: 8×8 compact type Ip67 Waterproof tact switches


Feature:


Product Name: Waterproof Tact Switch

Product specifications: 8×8×13MM

Product model: KAN0851

Product strength: 160gf/260gf

Product life: 100,000 times

Waterproof rating: IP67


Basic parameters:

Working temperature: -20 ° Cto + 70 ° C

Rated current: 50mA.12V DC

Insulation resistance: 100MΩ min.100V DC

Dielectric strength: 250V AC for 1 min

Contact resistance: 100m Ω max.

Switching Travel: 0.25±0.1mm

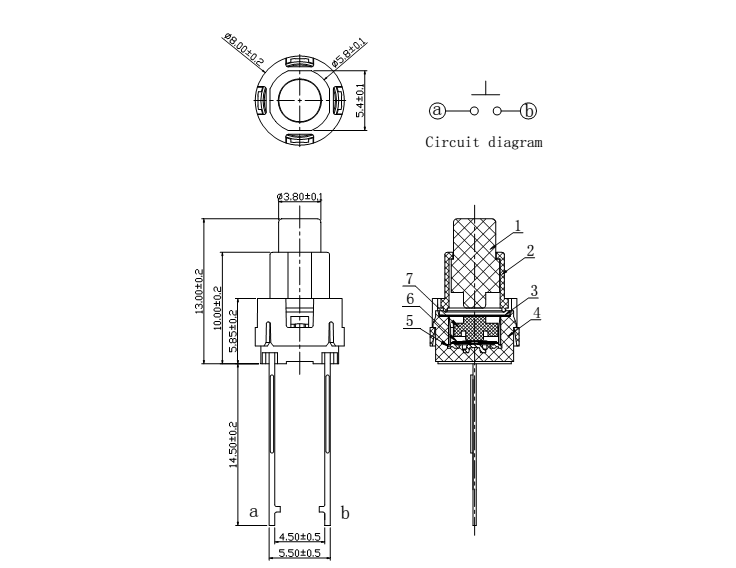

Dimension:

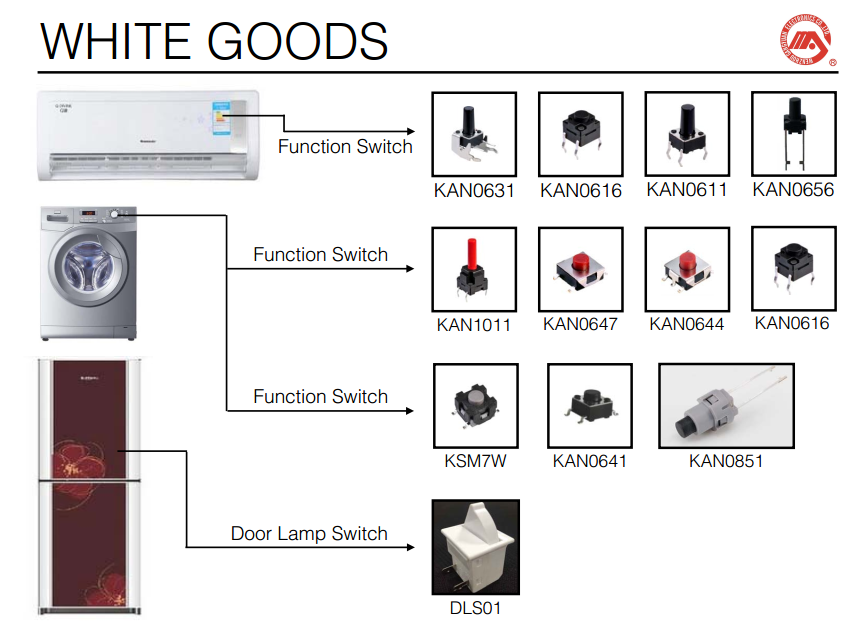

Application:

Use for Washing machine, kitchen electric, smart toilet cover, household appliances and other operational switches that require waterproof structure.
